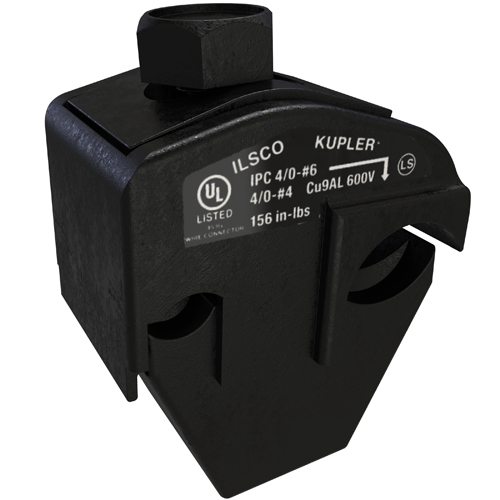

ILSCO® IPC-4/0-6

• Body is molded from tough, resilient glass filled nylon provides high degree of breakage resistance and long dependable use
• Compact design saves space
• Tin plated copper contact teeth easily penetrates most types of insulation
• Insulation piercing, no need to strip the conductor which saves installation time
• Perforated end tabs break out easily by hand
• Pre-filled with silicone lubricant prevents oxidation and moisture from entering the contact area
• Versatile - can be used as a splice or tap connector
• Increased safety contains no external energized parts, can be installed "hot" on energized conductors providing tap conductor is not under load
• Horizontal line grid provides a visual guide for proper installation of conductors
• For use with class B or C stranded conductor
• Dual-rated for aluminum and copper conductor
• Removable end tabs
• 14 to 6 AWG tap/secondary conductor size

ILSCO® KUP-L-Tap® Insulation Piercing Connector, Type IPC Dual Rated, Aluminum/Copper Conductor, 4 to 4/0 AWG Conductor, 1/2 in Bolt, 600 VAC, Specifications: 13 ft-lb Torque, 75 A Copper, 60 A Aluminum, 90 deg C, Copper, Tin Plated, Black, 1-7/8 in H x 1 in W Dimensions
