ILSCO® NB-350-36

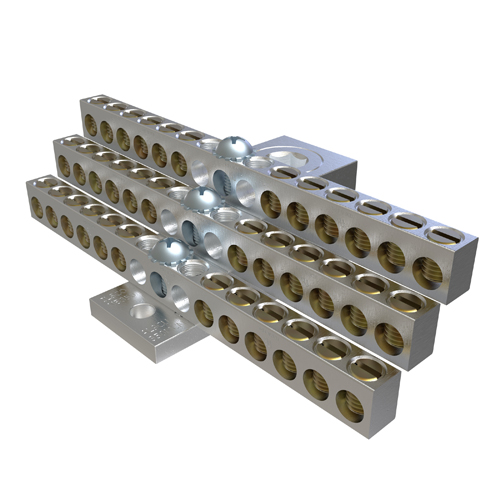

ILSCO® ClearChoice® NB-350-36 Dual Rated Mechanical Neutral Bar, 4.7188 in L x 2.5313 in W x 1.54 in H, 2000 VAC
Brand: ILSCO®
Item ID: 389532
MPN: NB-350-36
Login for Price
Features
- Preassembled, stacked neutral bars
- Available with phenolic base
- Fabricated from high strength 6061-T6 aluminum alloy
- Provides insulation from mounting surface
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Compact, space saving design offers multiple range taking flexibility and is suitable for grounding applications
Description
ILSCO® ClearChoice® Mechanical Neutral Bar, Dual Rated, Series: NB Series, 2.5313 in Bar Width, 4.7188 in Bar Length, 1.54 in Bar Height, 2000 VAC, 14 to 4 AWG Cable Tap, 6 AWG to 350 kcmil Cable Main, 36 Tap Quantity, 2 Mounting Hole Quantity, Aluminum, Electro-Plated Tin
Specifications
Bar Height |
1.54 in |
Bar Length |
4.7188 in |
Bar Width |
2.5313 in |
Cable Main |
6 AWG to 350 kcmil |
Cable Tap |
14 to 4 AWG |
Finish |
Electro-Plated Tin |
Material |
Aluminum |
Mounting Hole Quantity |
2 |
Series |
NB Series |
Tap Quantity |
36 |
Type |
Dual Rated |
Voltage Rating |
2000 VAC |
Standard Approval |
CSA LR-29601|UL 486A/B|E6207|UL Recognized|PROP65: it is not known to contain any chemicals associated with this regulation |
Application |
For tap connector |
