Elite Lighting G4IC-AT-W

• Housing Type: 4" IC-rated, airtight, new construction

• Lamp Compatibility: Up to 50W GU10 lamps

• Voltage: 120V

• Construction: Die-formed aluminum for maximum heat dissipation

• Bar Hangers: Preinstalled adjustable bar hangers fit up to 24" joist spans

• Junction Box: UL listed for through-branch circuit wiring; includes four ½"

  knockouts, one ¾" knockout, and four Romex knockouts with strain relief

• Ceiling Compatibility: Adjusts to accommodate ½" to 1-3/8" ceiling thickness

• Certifications: UL and cUL listed for damp locations and feed-through wiring

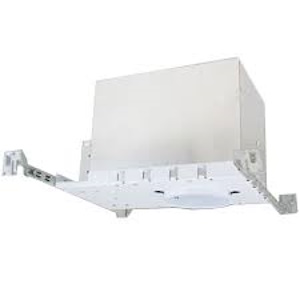

The Elite Lighting G4IC-AT-W is a 4-inch, line voltage, thermally protected recessed housing designed for new construction applications. It is IC-rated, allowing direct contact with insulation, and features an airtight design to prevent airflow between conditioned and unconditioned spaces. This housing accommodates up to 50W GU10 lamps and is equipped with preinstalled adjustable bar hangers for easy installation. The junction box includes multiple knockouts and Romex clamps for versatile wiring options.
