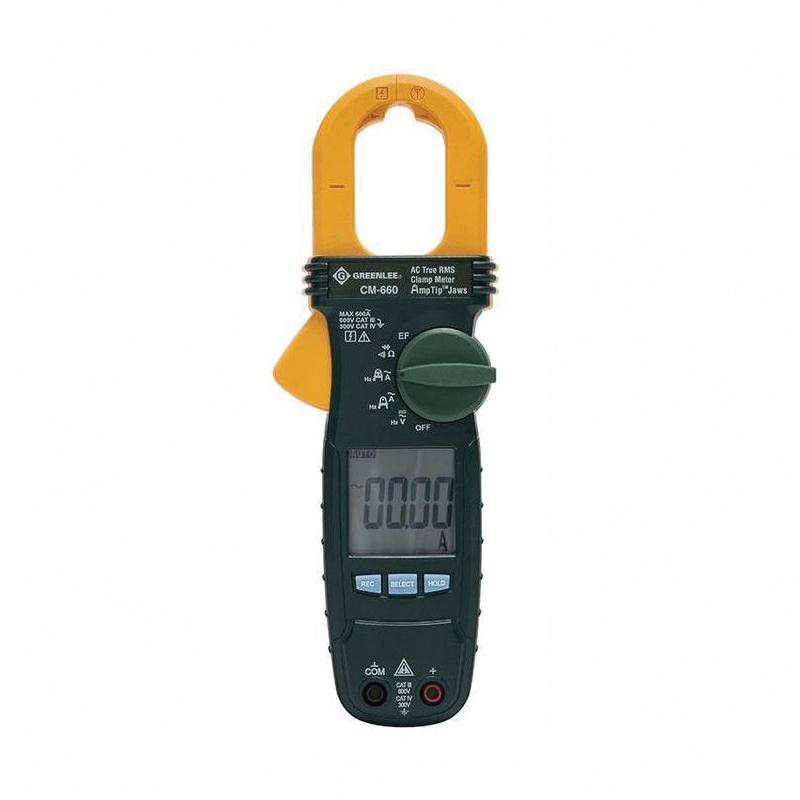

Greenlee® CM-660
Greenlee® CM-660 AC True RMS Clamp Meter, 600 VAC/VDC, 60/600 A, 600 Ohm/6/60 kOhm, 50/60 Hz, 1.18 in Jaw, LCD Display
Brand: Greenlee®
Item ID: 425393
MPN: CM-660
Login for Price
Features
- Measures AC current
- AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes - non-contact or using a single test lead
- Recording of maximum, minimum and average readings
Description
Greenlee® Clamp Meter, AC True RMS, 600 VAC/VDC, 60/600 A Electrical Rating, 600 Ohm/6/60 kOhm Resistance, 50/60 Hz Frequency, 1.18 in Jaw, 6000 Count, LCD Display, Safety Rating: CAT III 600 VAC/CAT IV 300 VAC, 1.5 VDC AAA Battery Power Source
Specifications
Counts |
6000 |
Display Type |
LCD |
Electrical Ratings |
600 VAC/VDC, 60/600 A |
Frequency Rating |
50/60 Hz |
Jaw Capacity |
1.18 in |
Power Source |
1.5 VDC AAA Battery |
Resistance |
600 Ohm/6/60 kOhm |
Safety Rating |
CAT III 600 VAC/CAT IV 300 VAC |
Type |
AC True RMS |
Standard Approval |
ARRA Compliant|cULus Listed|CE Certified |
