FULHAM® SC-120-213-LT5

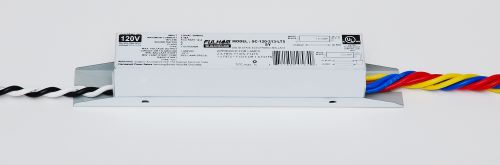

FULHAM® SC-120-213-LT5 High Frequency Electronic Fluorescent Ballast, T5 Lamp, 120 VAC, Rapid, 1.37 Ballast Factor
Brand: FULHAM®
Item ID: 387132
MPN: SC-120-213-LT5
Login for Price
Description
FULHAM® Electronic Fluorescent Ballast, High Frequency, T5 Lamp, 24.52/33.63 W Wattage, 120 VAC, 0.48 A, 50/60 Hz Frequency, Rapid Start, 14 deg F Minimum Starting, Total Harmonic Distortion: 124.5 %, Power Factor: >0.5, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 1.37, 5-1/2 in L x 1-5/16 in W x 1 in H Dimensions
Specifications
Amperage Rating |
0.48 A |
Ballast Factor |
1.37 |
Dimensions |
5-1/2 in L x 1-5/16 in W x 1 in H |
Frequency Rating |
50/60 Hz |
Lamp Type |
T5 |
Minimum Starting Temperature |
14 deg F |
Number of Lamps |
2 |
Power Factor |
>0.5 |
Start Type |
Rapid |
Thermal Protection |
Class P |
Total Harmonic Distortion |
124.5 % |
Type |
High Frequency |
Voltage Rating |
120 VAC |
Wattage |
24.52/33.63 W |
Standard Approval |
UL/cUL Listed|ARRA Compliant |
Application |
Commercial and Residential Applications |
