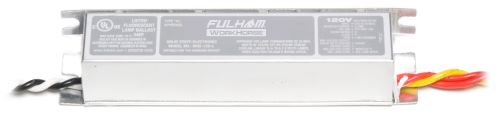

FULHAM® WH2-120-L
FULHAM® WorkHorse™ WH2-120-L Light Weight Versatile Electronic Fluorescent Ballast, T24 CFL Lamp, 28 W Lamp, 120 VAC, Instant, 0.87 Ballast Factor
Brand: FULHAM®
Item ID: 383821
MPN: WH2-120-L
Login for Price
Features
- ANSI C82.11 - 1993 voltage transient
- A sound rated
- Solid state electronic ballast
- High power factor
Description
FULHAM® WorkHorse™ Electronic Fluorescent Ballast, Light Weight Versatile, T24 CFL Lamp, 28 W Lamp, 35 W Wattage, 120 VAC, 0.14 to 0.33 A, 50/60 Hz Frequency, Instant Start, -20 deg F Minimum Starting, Total Harmonic Distortion: <38.7 %, Power Factor: >0.98, 2 Lamps, Thermal Protection: Class P, Ballast Factor: 0.87, -20 deg F, Aluminum Gray/White, 5.5 in L x 1 in W x 1 in H Dimensions
Specifications
Amperage Rating |
0.14 to 0.33 A |
Ballast Factor |
0.87 |
Color |
Aluminum Gray/White |
Dimensions |
5.5 in L x 1 in W x 1 in H |
Frequency Rating |
50/60 Hz |
Lamp Type |
T24 CFL |
Lamp Wattage |
28 W |
Minimum Starting Temperature |
-20 deg F |
Number of Lamps |
2 |
Power Factor |
>0.98 |
Start Type |
Instant |
Temperature Range |
-20 deg F |
Thermal Protection |
Class P |
Total Harmonic Distortion |
<38.7 % |
Type |
Light Weight Versatile |
Voltage Rating |
120 VAC |
Wattage |
35 W |
Standard Approval |
ARRA Compliant|cUL Listed|UL Listed |
Application |
Commercial and Residential Applications |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b679ce84ed113046be564d870bd026bdcdc95bda8ef0bbc34f2bac8258897c86.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_581918291caf5d2857fdcee18ce9a89b388adc66047dcb7ed72d3bc1c8ccb406.pdf
VIDEO LINK
http://www.youtube.com/watch?v=tommDI2KjRY
