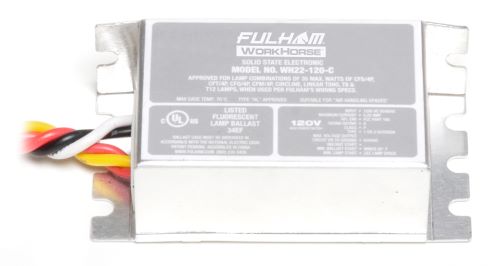

FULHAM® WH22-120-C
FULHAM® WH22-120-C WorkHorse™ Electronic Fluorescent Ballast, CFL Lamp, 15 to 26 W Lamp, 120 VAC, Instant, 0.9 to 1.1 Ballast Factor
Brand: FULHAM®
Item ID: 384043
MPN: WH22-120-C
Login for Price
Features
- Open/shorted lamp
- Versatile, energy saving, high power factor, lightweight, small case size, solid state electronics ballast
- C62.41 class A 7 strikes is transient protection, ANSI C82.11 - 1993 voltage transient
- Meets ANSI C82.11-1993 is Atotal harmonic distortion
- A sound rated
- 600 Vrms maximum open circuit voltage
Description
FULHAM® Electronic Fluorescent Ballast, Series: WorkHorse™, CFL Lamp, 15 to 26 W Lamp, 35 W Wattage, 120 VAC, 0.32 A, 50/60 Hz Frequency, Instant Start, -20 to 158 deg F Minimum Starting, Total Harmonic Distortion: <30 %, Power Factor: >0.9, Ballast Factor: 0.9 to 1.1, -20 deg F, 3.3 in L x 1.75 in W x 1 in H Dimensions
Specifications
Amperage Rating |
0.32 A |
Ballast Factor |
0.9 to 1.1 |
Dimensions |
3.3 in L x 1.75 in W x 1 in H |
Frequency Rating |
50/60 Hz |
Lamp Type |
CFL |
Lamp Wattage |
15 to 26 W |
Minimum Starting Temperature |
-20 to 158 deg F |
Power Factor |
>0.9 |
Series |
WorkHorse™ |
Start Type |
Instant |
Temperature Range |
-20 deg F |
Total Harmonic Distortion |
<30 % |
Voltage Rating |
120 VAC |
Wattage |
35 W |
Standard Approval |
UL Listed|FCC CFR Title 47 Part 18 Non-Consumer|ARRA Compliant |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6a35507358d80f7d6f85e4360f69df6acf9e44792cb3de017ae2ed78c5016ad5.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b02e214a6368b8393385017fffd9d13a2e94afc5a7e65708e3f3677cc21a6020.pdf
VIDEO LINK
http://www.youtube.com/watch?v=tommDI2KjRY
