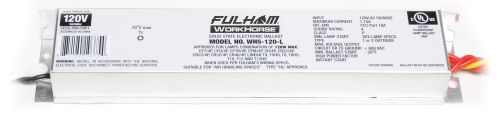

FULHAM® WH5-120-L
FULHAM® WorkHorse™ WH5-120-L High Frequency Versatile Electronic Fluorescent Ballast, F96T12HOSS95W/F96T12HO110W/F72T12HO/F96T12HO95W Lamp, 120 VAC, Instant, 0.87 Ballast Factor
Brand: FULHAM®
Item ID: 355475
MPN: WH5-120-L
Login for Price
Features
- Solid state
- Energy saving
- High power factor
- Lightweight
- Small case size
- Solid state electronics
- 600 VAC open circuit voltage
- Sound rated A
Description
FULHAM® WorkHorse™ Electronic Fluorescent Ballast, High Frequency Versatile, F96T12HOSS95W/F96T12HO110W/F72T12HO/F96T12HO95W Lamp, 128 W Wattage, 120 VAC, 1.15 A, 50/60 Hz Frequency, Instant Start, -20 deg F Minimum Starting, Total Harmonic Distortion: <32 %, Power Factor: >0.98, 4 Lamps, Thermal Protection: Class P, Ballast Factor: 0.87, NEMA 1 Enclosure, 70 deg C, Aluminum Gray/White, 8.5 in L x 1.72 in W x 1 in H Dimensions
Specifications
Amperage Rating |
1.15 A |
Ballast Factor |
0.87 |
Color |
Aluminum Gray/White |
Dimensions |
8.5 in L x 1.72 in W x 1 in H |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Lamp Type |
F96T12HOSS95W/F96T12HO110W/F72T12HO/F96T12HO95W |
Minimum Starting Temperature |
-20 deg F |
Number of Lamps |
4 |
Power Factor |
>0.98 |
Start Type |
Instant |
Temperature Range |
70 deg C |
Thermal Protection |
Class P |
Total Harmonic Distortion |
<32 % |
Type |
High Frequency Versatile |
Voltage Rating |
120 VAC |
Wattage |
128 W |
Standard Approval |
ARRA Compliant|ANSI C82.11|FCC Certified|UL Listed |
Application |
Commercial and Residential Applications |
Documentation
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9789847dfee65245552104333fb76af7e87ddf8c322fbaa1908e7cc5266ad8f6.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f8c92d848e3dfbf578706e0aa3f011d1d010a8f0aca80b8e8bad578f3ef03bec.pdf
VIDEO LINK
http://www.youtube.com/watch?v=tommDI2KjRY
