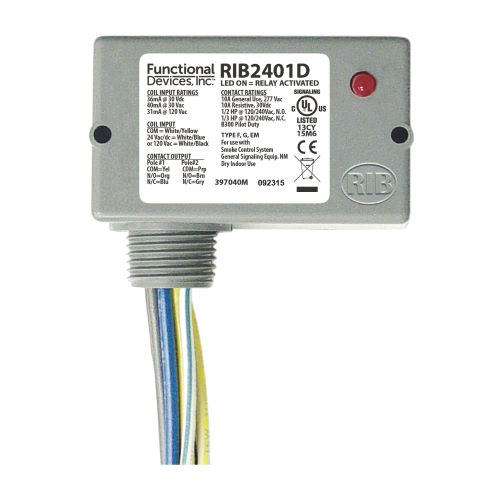

Functional Devices™ RIB2401D
Functional Devices™ RIB2401D Pilot Relay, 10 A, DPDT Contact, 120 VAC, 24 VAC/VDC V Coil
Brand: Functional Devices™
Item ID: 356955
MPN: RIB2401D
Login for Price
Description
Functional Devices™ Pilot Relay, 10 A, 3.7 VA, 0.58 W Power, 50/60 Hz Frequency, 120 VAC, 24 VAC/VDC Coil, DPDT Contact Form, 10 A at 277 V, 10 A at 30 V Contact, 2 Pole, Surface Mounting, LED Display, NEMA 1 Enclosure, -30 to 140 deg F, 2.8 in W x 1.5 in D x 1.7 in H Dimensions
Specifications
Amperage Rating |
10 A |
Coil Voltage |
120 VAC, 24 VAC/VDC |
Contact Form |
DPDT |
Contact Rating |
10 A at 277 V, 10 A at 30 V |
Dimensions |
2.8 in W x 1.5 in D x 1.7 in H |
Display Type |
LED |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Mounting Type |
Surface |
Number of Poles |
2 |
Power Rating |
3.7 VA, 0.58 W |
Temperature Rating |
-30 to 140 deg F |
Standard Approval |
cUL 916/864|CE Certified|RoHS Compliant|UL 916/864 |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Functional_Devices_RIB2401D_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Functional_Devices_RIB2401D_Specification_Sheet.pdf
