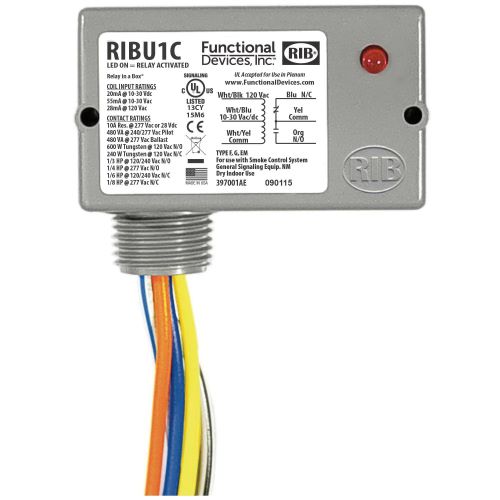

Functional Devices™ RIBU1C
Functional Devices™ RIBU1C Pilot Relay, 10 A, SPDT Contact, 120 VAC, 30 VAC/VDC V Coil
Brand: Functional Devices™
Item ID: 356907
MPN: RIBU1C
Login for Price
Features
- 10 million cycles minimum mechanical expected relay life
- 20 ms operate time
- Relay status -LED on equals activated
- 16 in, 600 V rated wires
- Humidity range - 5 to 95 percent (non-condensing)
- -30 to 140 deg F operating temperature
- LED display
- 10 A resistive at 277 VAC, 10 A resistive at 28 VDC, 480 VA pilot duty at 240-277 VAC, 480 VA ballast at 277 VAC, 600 Watt tungsten at 120 VAC (N/O), 240 W tungsten at 120 VAC (N/C), 1/3 hp at 120-240 VAC (N/O), 1/6 hp at 120-240 VAC (N/C), 1/4 hp at 277 VAC (N/O), 1/8 hp at 277 VAC (N/C)
Description
Functional Devices™ Pilot Relay, 10 A, 3.4 VA, 0.6 W Power, 50/60 Hz Frequency, 120 VAC, 30 VAC/VDC Coil, SPDT Contact Form, 10 A at 277 V, 10 A at 28 V Contact, 1 Pole, Surface Mounting, LED Display, NEMA 1 Enclosure, -30 to 140 deg F, 2.8 in W x 1.5 in D x 1.7 in H Dimensions
Specifications
Amperage Rating |
10 A |
Coil Voltage |
120 VAC, 30 VAC/VDC |
Contact Form |
SPDT |
Contact Rating |
10 A at 277 V, 10 A at 28 V |
Dimensions |
2.8 in W x 1.5 in D x 1.7 in H |
Display Type |
LED |
Enclosure Type |
NEMA 1 |
Frequency Rating |
50/60 Hz |
Mounting Type |
Surface |
Number of Poles |
1 |
Power Rating |
3.4 VA, 0.6 W |
Temperature Rating |
-30 to 140 deg F |
Standard Approval |
CE Certified|RoHS Compliant|UL Listed |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Functional_Devices_RIBU1C_Specification_Sheet.pdf
