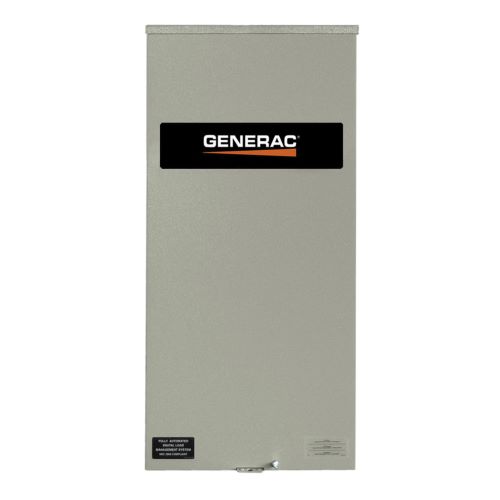

Generac® RTSW400A3
Generac® RTSW400A3 Automatic Transfer Switch, 120/240 VAC, 400 A, 96 kW Power Rating, 1 Phases, NEMA 3R Enclosure
Brand: Generac®
Item ID: 471716
MPN: RTSW400A3
Login for Price
Features
- Service rated (RXSW) Generac automatic transfer switches are housed in an aluminum NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint
- The heavy duty Generac contactor is a UL recognized device, designed for years of service
- Digital power technology (DPM) allows these switches to have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
- When used in tandem with smart management modules, up to 8 loads can be managed as well, providing the most installation efficient power management options available
Description
Generac® Automatic Transfer Switches are designed for use with single phase generators that utilize Evolution or Nexus Controllers. The 100, 200 and 400 A open transition switches are available in single phase in both service equipment rated and non-service equipment rated configurations. The 150 and 300 A open transition switches are only available in a service rated equipment configuration.
Generac® Automatic Transfer Switch, 120/240 VAC, 400 A, 96 kW, 1 Phase, 21.82 in Width, 10.06 in D, 48 in Height, NEMA 3R, Aluminum
Specifications
Amperage Rating |
400 A |
Depth |
10.06 in |
Enclosure Type |
NEMA 3R |
Height |
48 in |
Material |
Aluminum |
Number of Phases |
1 |
Power Rating |
96 kW |
Voltage Rating |
120/240 VAC |
Width |
21.82 in |
Standard Approval |
UL Listed|PROP65: Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov |
