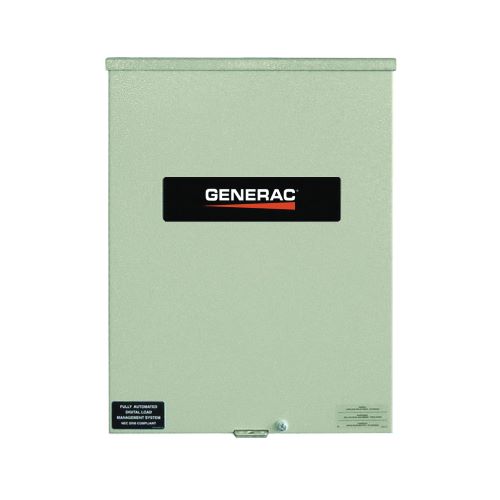

Generac® RXSC100A3
Generac® RXSC100A3 Automatic Smart Transfer Switch With Power Management, 120/240 V, 100 A, 24000 W Power Rating, 1 Phase, NEMA 3R Enclosure
Brand: Generac®
Item ID: 473339
MPN: RXSC100A3
UPC: 696471069600
Login for Price
Features
- Generac® automatic transfer switches are housed in an aluminum NEMA/UL type 3R enclosure, with electrostatically applied and baked powder paint
- Heavy duty Generac® contactor is a UL and CUL recognized device, designed for years of service, the controller at the generator handles all the timing, sensing, exercising functions and transfer commands
- Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware
- Cycles power on and off as needed for different appliances
Description
Generac® Automatic Transfer Switches are designed for use with single phase generators that utilize an Evolution or Nexus Controller. Through the use of digital power technology (DPM), these switches have the capability to manage up to 4 individual HVAC (24 VAC controlled) loads with no additional hardware.
Generac® Smart Transfer Switch, Automatic, 120/240 V, 100 A, 24000 W, 1 ph, 14.6 in Width, 7.09 in Depth, 20 in Height, NEMA 3R Enclosure, Steel, Gray, Electrostatic Baked Powder Painted
Specifications
Amperage Rating |
100 A |
Color |
Gray |
Depth |
7.09 in |
Enclosure Type |
NEMA 3R |
Finish |
Electrostatic Baked Powder Painted |
Height |
20 in |
Material |
Steel |
Number of Phases |
1 |
Power Rating |
24000 W |
Type |
Automatic |
Voltage Rating |
120/240 V |
Width |
14.6 in |
Standard Approval |
cUL Listed|UL Listed|PROP65: Operating, servicing and maintaining this equipment can expose you to chemicals including engine exhaust, carbon monoxide, phthalates and lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, avoid breathing exhaust, do not idle the engine except as necessary, service your equipment in a well ventilated area and wear gloves or wash your hands frequently when servicing your equipment. For more information go to www.P65Warnings.ca.gov |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GENERAC_RXSC100A3_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GENERAC_RXSC100A3_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GENERAC_RXSC100A3_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/GENERAC_RXSC100A3_User_Manual.pdf
