RACO® 128

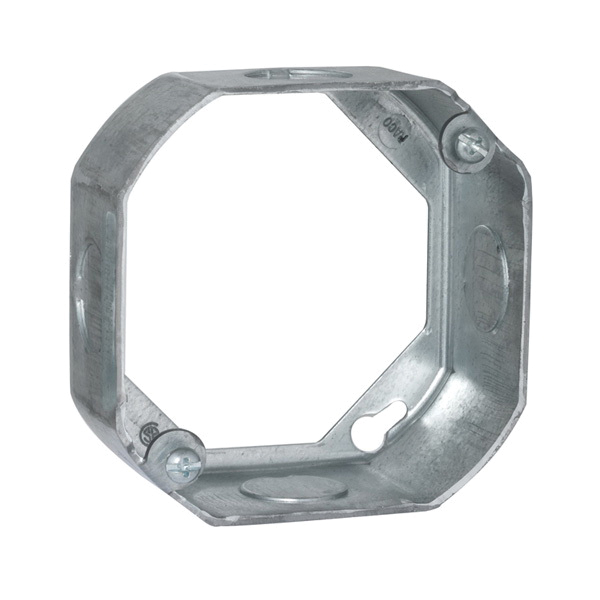

RACO® 128 Extension Ring, 2 Gangs, 4 in L x 4 in W x 1-1/2 in D, Steel
Brand: RACO®
Item ID: 34277
MPN: 128
Login for Price
Features
- Extension rings provide a means for adding additional cubic capacity or as an outlet box for surface conduit
- Combination screw heads provide for faster installation
- Fire resistance acceptable for use in 2 hr rated walls
- Conduit wiring system
- 50 lb static fixture
- Drawn construction
- (4) 1/2 inside knockouts
Description
RACO® Extension Ring, 2 Gangs, 4 Knockouts, 1/2 in Knockout, 4 in Length, 4 in W, 1-1/2 in D, Octagon, 15.5 cu-in, Steel, Pre-Galvanized, Silver
Specifications
Capacity |
15.5 cu-in |
Color |
Silver |
Depth |
1-1/2 in |
Finish |
Pre-Galvanized |
Knockout Size |
1/2 in |
Length |
4 in |
Material |
Steel |
Number of Gangs |
2 |
Number of Knockouts |
4 |
Shape |
Octagon |
Width |
4 in |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Ceiling or Wall Lighting Fixtures and Electrical Applications |
