RACO® 192

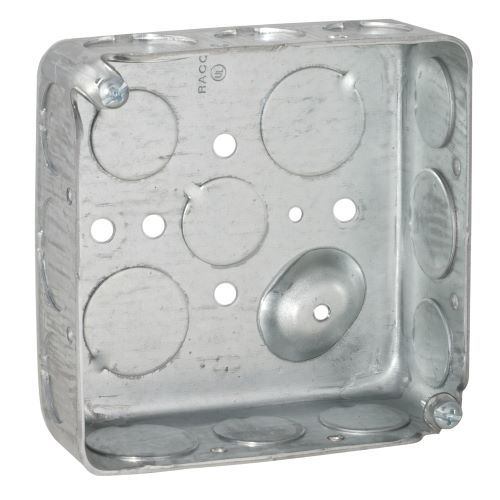

RACO® 192 Raised Ground Square Box, Steel, 21 cu-in Capacity, (16) Knockouts, 4 in H x 4 in W x 1-1/2 in D
Brand: RACO®
Item ID: 34295
MPN: 192
Login for Price
Features
- Combination screw heads provide for faster installation
- Combination Phillips/slotted screw heads
- (8) 1/2 in, (4) 3/4 in conduit side, (2) 1/2 in, (2) 3/4 in conduit bottom knockouts
Description
RACO®, 192, Square Box, Raised Ground, 16 Knockouts, 1/2, 3/4 in Knockout, Squared Shape, 21 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 1-1/2 in D Dimensions
Specifications
Capacity |
21 cu-in |
Color |
Silver |
Dimensions |
4 in H x 4 in W x 1-1/2 in D |
Finish |
Pre-Galvanized |
Knockout Size |
1/2, 3/4 in |
Material |
Steel |
Number of Knockouts |
16 |
Shape |
Squared |
Type |
Raised Ground |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|UL File No. E195978 |
Application |
For electrical application, lighting fixtures, switches or receptacles |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Raco_9001_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873620078.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fb3aa9e0469a532d2a3c22f00a29155e43332aaed7c353d19e8f73c14e34726a.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
