RACO® 203

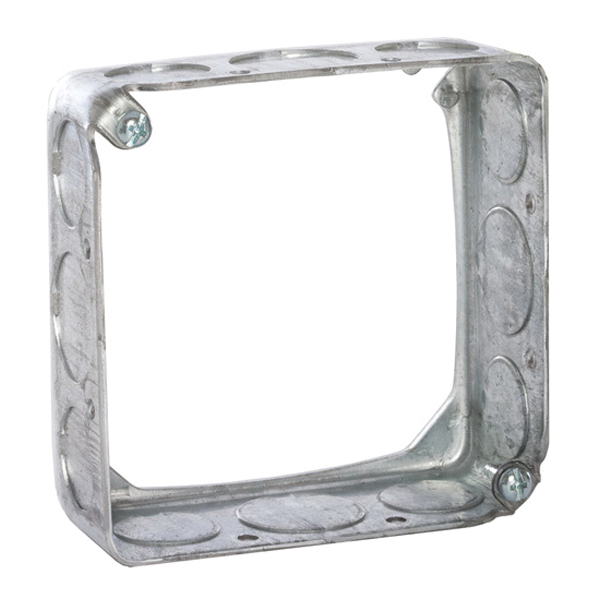

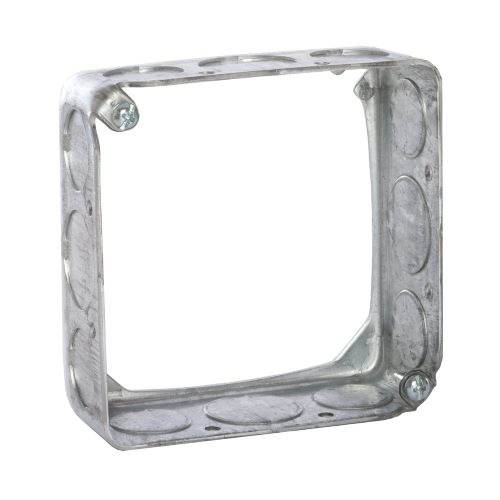

RACO® 203 Extension Ring, 2 Gangs, 4 in L x 4 in W x 1.56 in D, Steel
Brand: RACO®
Item ID: 34301
MPN: 203
Login for Price
Features
- Extension rings provide a means for adding cubic capacity or as an outlet box for surface conduit
- Combination screw heads provide for faster installation
- Fire resistance - acceptable for use in 2 hr rated walls
- Conduit wiring system
- No bracket
- Drawn configuration
- (8) 1/2 in and (4) 3/4 in side knockouts
Description
RACO® Extension Ring, 2 Gangs, 12 Knockouts, 1/2 in, 3/4 in Knockout, 4 in Length, 4 in W, 1.56 in D, Squared, 22.5 cu-in, Surface Mount, Steel, Pre-Galvanized, Silver
Specifications
Capacity |
22.5 cu-in |
Color |
Silver |
Depth |
1.56 in |
Finish |
Pre-Galvanized |
Knockout Size |
1/2 in, 3/4 in |
Length |
4 in |
Material |
Steel |
Mounting Type |
Surface |
Number of Gangs |
2 |
Number of Knockouts |
12 |
Shape |
Squared |
Width |
4 in |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Application |
Electrical Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_61d98501bc1afb82029eff4bc1c71995c834c85edfa79036ce3a939d7ebf9339.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
