RACO® 250

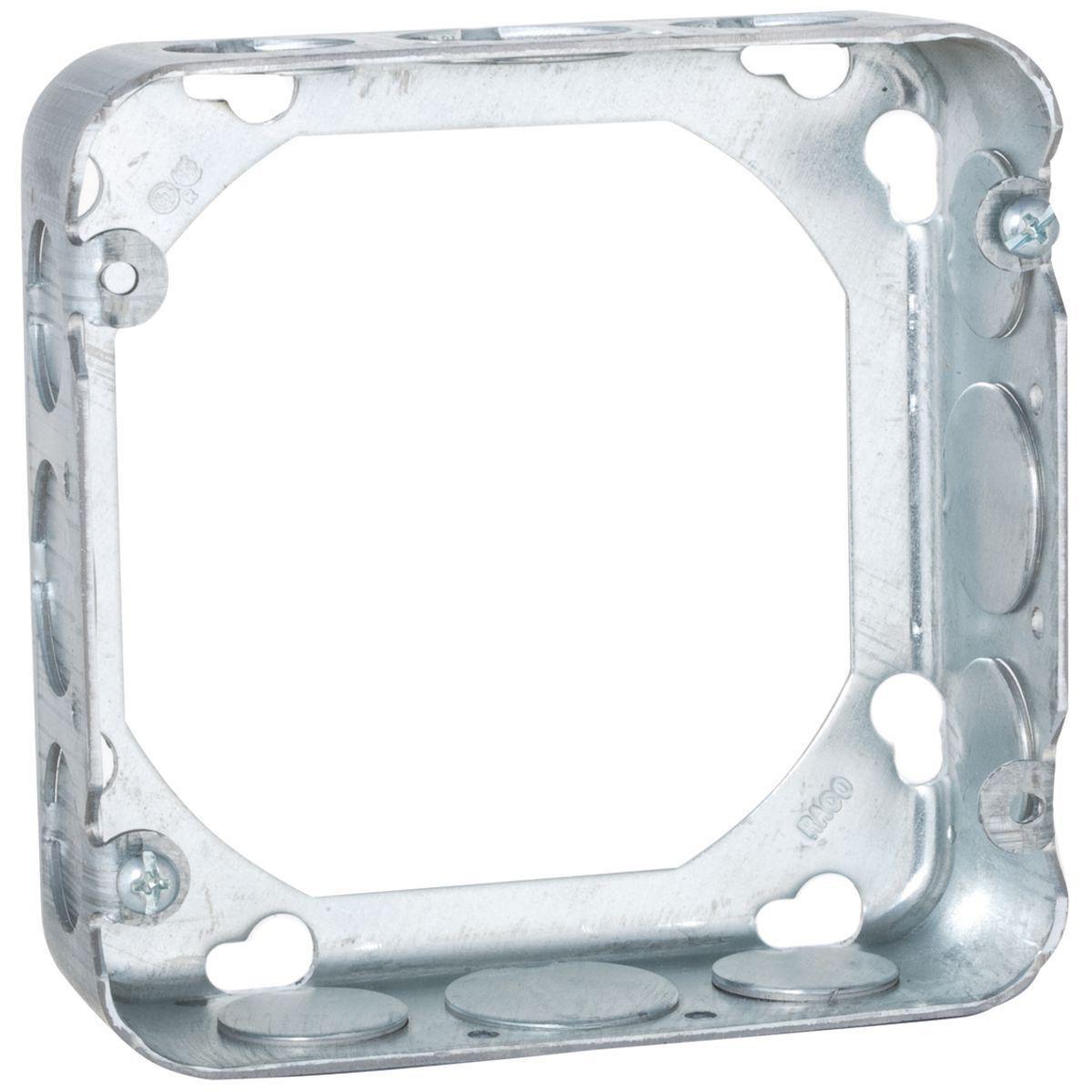

RACO® 250 Square Box Extension Ring, 4-11/16 in L x 4-11/16 in W x 1-1/2 in D, Steel
Brand: RACO®
Item ID: 34322
MPN: 250
Login for Price
Features
- Combination screw heads provide for faster installation, key hole design allows installation of ring without removing box cover screws
- 4-11/16 in square extension ring
- Drawn construction
- Key hole design allows installation of ring without removing box cover screws
Description
RACO® Square Box Extension Ring, 12 Knockouts, 1/2 in, 3/4 in Knockout, 4-11/16 in Length, 4-11/16 in Width, 1-1/2 in Depth, Squared Shape, Knockout Cable Entry, 29.5 cu-in Capacity, Steel, Pre-Galvanized, Silver
Specifications
Cable Entry Size |
Knockout |
Capacity |
29.5 cu-in |
Color |
Silver |
Depth |
1-1/2 in |
Finish |
Pre-Galvanized |
Knockout Size |
1/2 in, 3/4 in |
Length |
4-11/16 in |
Material |
Steel |
Number of Knockouts |
12 |
Shape |
Squared |
Width |
4-11/16 in |
Standard Approval |
UL File No E195978 |
Application |
For a wide variety of industrial applications where larger sized conductors or wiring devices are needed and more volume is required and electrical applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/RACO_131RAC_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662204564.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0b8cc95fd05823b55b378162186327e6e853280ff644a8cc21addd75e598203d.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
