RACO® 257

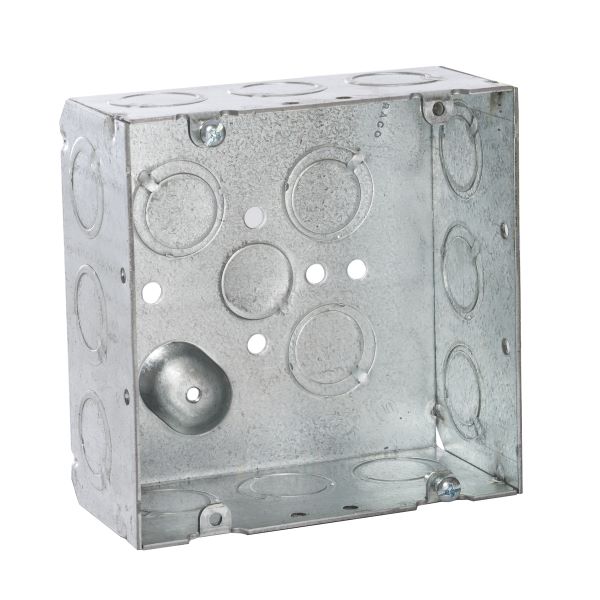

RACO® 257 Square Box, Steel, 42 cu-in Capacity, (16) Knockouts, 4-11/16 in H x 4-11/16 in W x 2-1/8 in D
Brand: RACO®
Item ID: 34325
MPN: 257
Login for Price
Features
- Welded construction
- Combination screw heads provide for faster installation
- TKO knockouts allow for design and installation flexibility
- For use without a bonding jumper in circuits up to 600 volts
- Raised ground provision in back of box
Description
RACO® is the United States' leading manufacturer of steel electrical boxes and covers. RACO® manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO® also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thin wall) fittings and liquid tight conduit fittings.
RACO®, 257, Square Box, 16 Knockouts, 1/2, 3/4 in Knockout, Squared Shape, 42 cu-in Capacity, Steel, Pre-Galvanized, Silver, 4-11/16 in H x 4-11/16 in W x 2-1/8 in D Dimensions
Specifications
Capacity |
42 cu-in |
Color |
Silver |
Dimensions |
4-11/16 in H x 4-11/16 in W x 2-1/8 in D |
Finish |
Pre-Galvanized |
Knockout Size |
1/2, 3/4 in |
Material |
Steel |
Number of Knockouts |
16 |
Shape |
Squared |
Standard Approval |
ARRA Compliant|Buy American Act Compliant|UL File No. E195978 |
Application |
For wide variety of industrial where larger sized conductors or wiring devices are needed and more volume is required and electrical applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Raco_9001_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1511873620078.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_53f624cf986d4d305d9570b8d615b86ceb7d683aea65b6e2b7e505ba569114f4.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
