RACO® 574

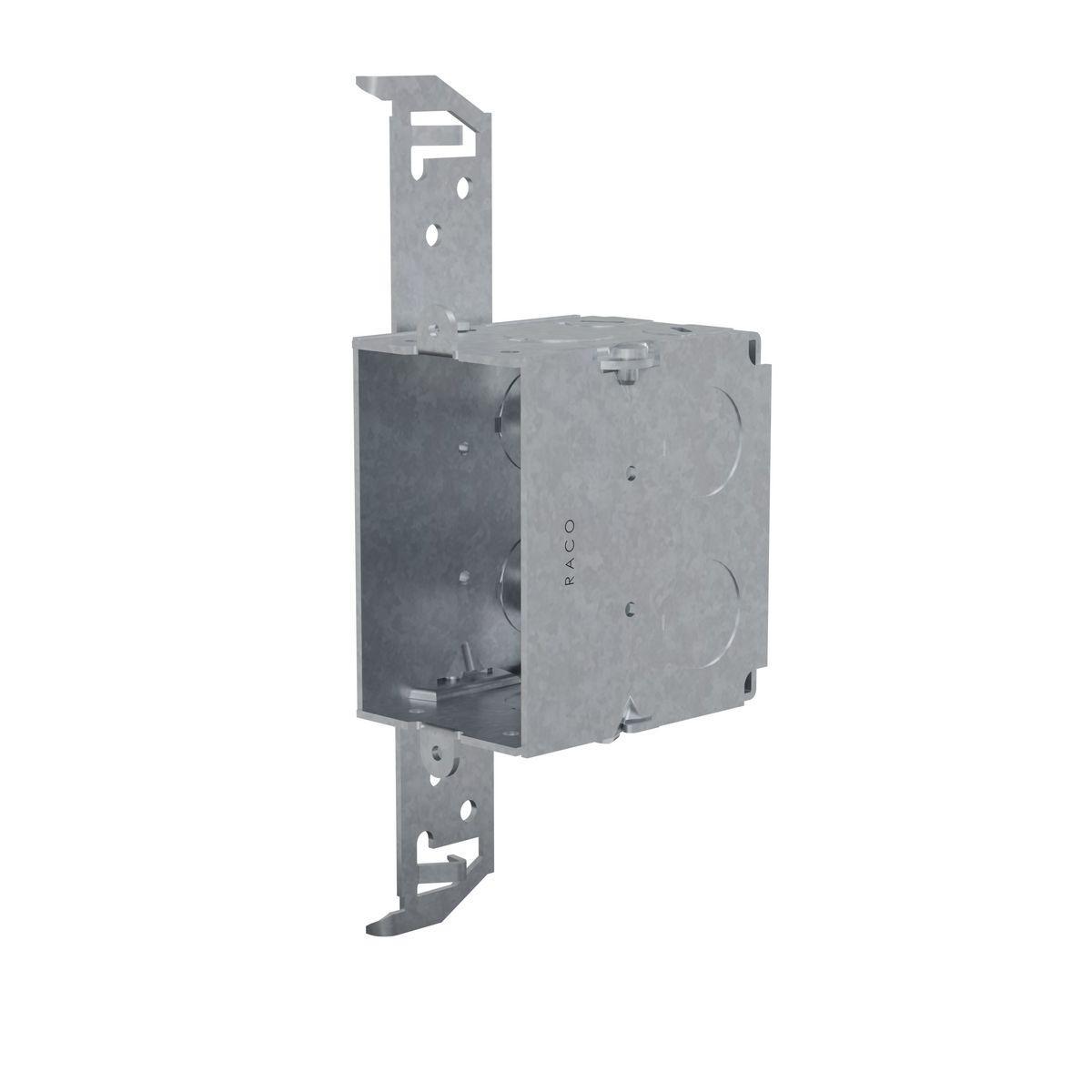

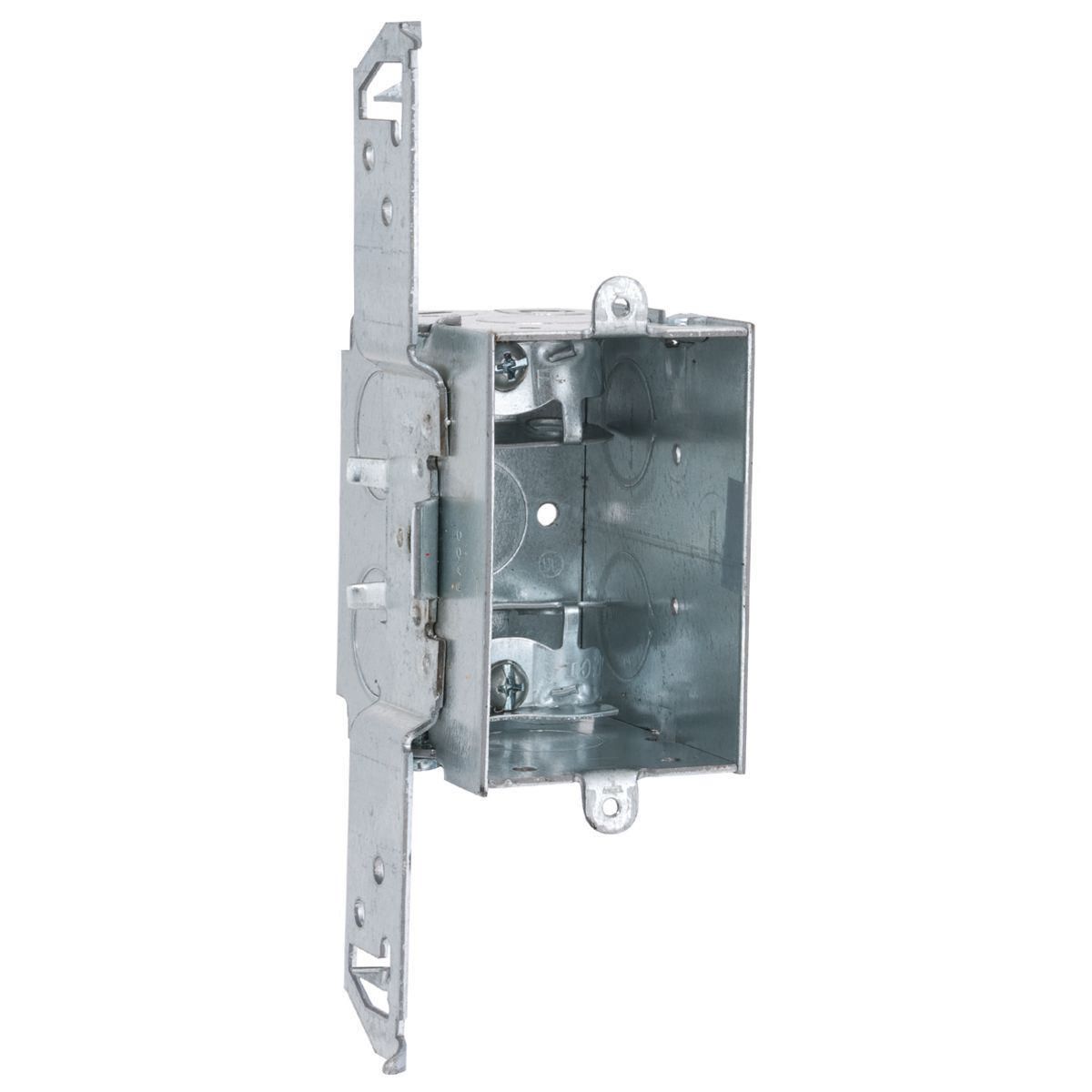

RACO® 574 Gangable Switch Box, Steel, 14 cu-in Capacity, 1 Gangs, 1 Outlets, 9 Knockouts, 2.2 in H x 7 in W x 2.75 in D
Brand: RACO®
Item ID: 34416
MPN: 574
Login for Price
Features
- Gangable switch box offers the option of constructing a box to hold two or more devices
- (2) 1/2 in side knockouts
- TS bracket features gauging tabs and recessed nailing spurs for metal and wood studs
- For use in 2-hours rated walls
- Nail-on screw-on mounting
- (1) 1/2 in bottom knockouts
- (2) 1/2 in and (4) priouts end knockouts
Description
RACO® Switch Box, Gangable, 1 Outlets, 1 Gangs, 9 Knockouts, 1/2 in Knockout, Rectangle Shape, Threaded Mounting, 14 cu-in Capacity, Steel, Pre-Galvanized, Silver, 2.2 in H x 7 in W x 2.75 in D Dimensions
Specifications
Capacity |
14 cu-in |
Color |
Silver |
Dimensions |
2.2 in H x 7 in W x 2.75 in D |
Finish |
Pre-Galvanized |
Knockout Size |
1/2 in |
Material |
Steel |
Mounting Type |
Threaded |
Number of Gangs |
1 |
Number of Knockouts |
9 |
Number of Outlets |
1 |
Shape |
Rectangle |
Type |
Gangable |
Standard Approval |
UL File No. E195978 |
Application |
For house wiring devices such as switches, outlets and electrical applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Raco_9001_Catalog.pdf
SDS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_1537662204564.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e6db62f45d2ec73bf73bc23658ba2b296872bd7adc62bc161fca1f0f35484737.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
