Wiring Device-Kellems DR15WHIWRTR

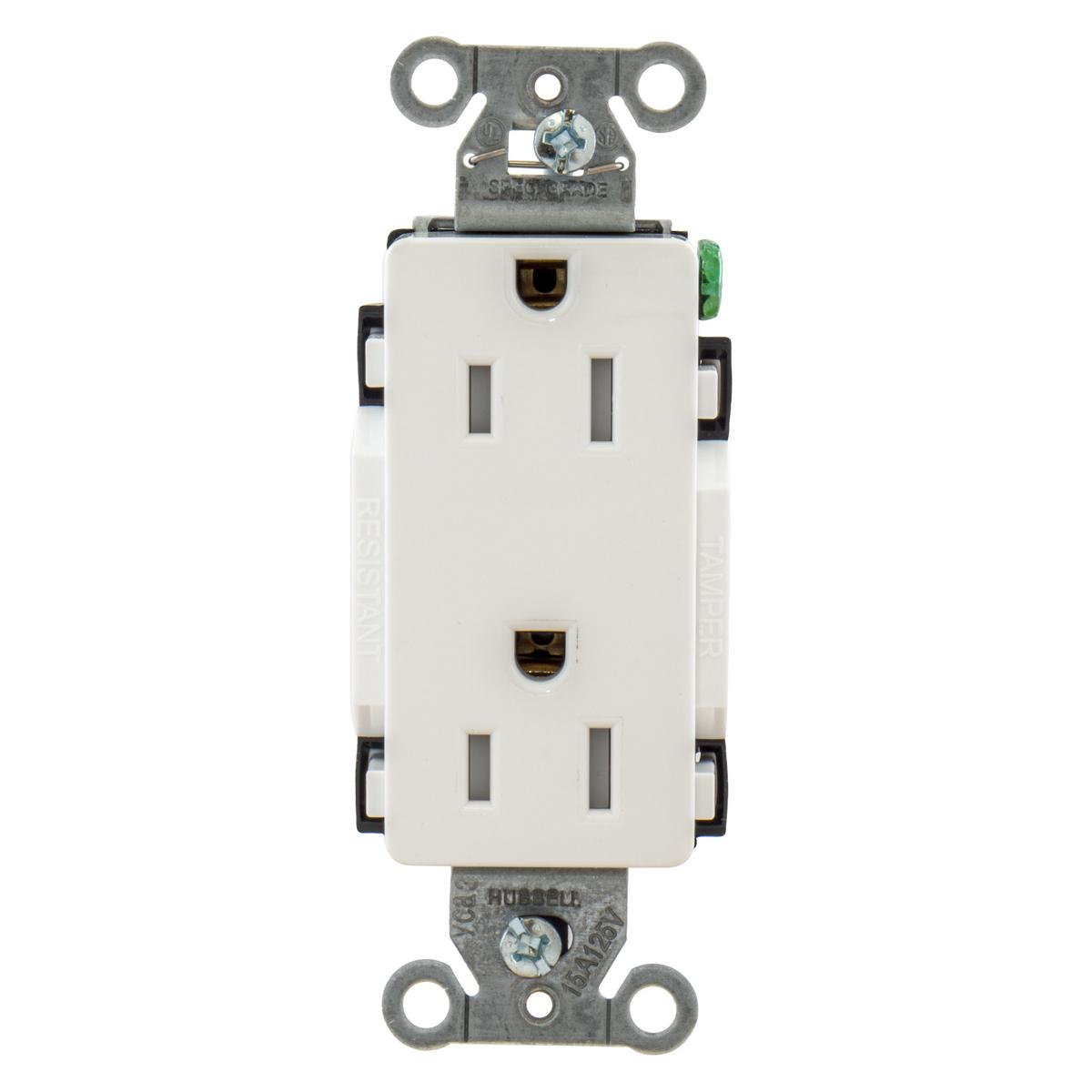

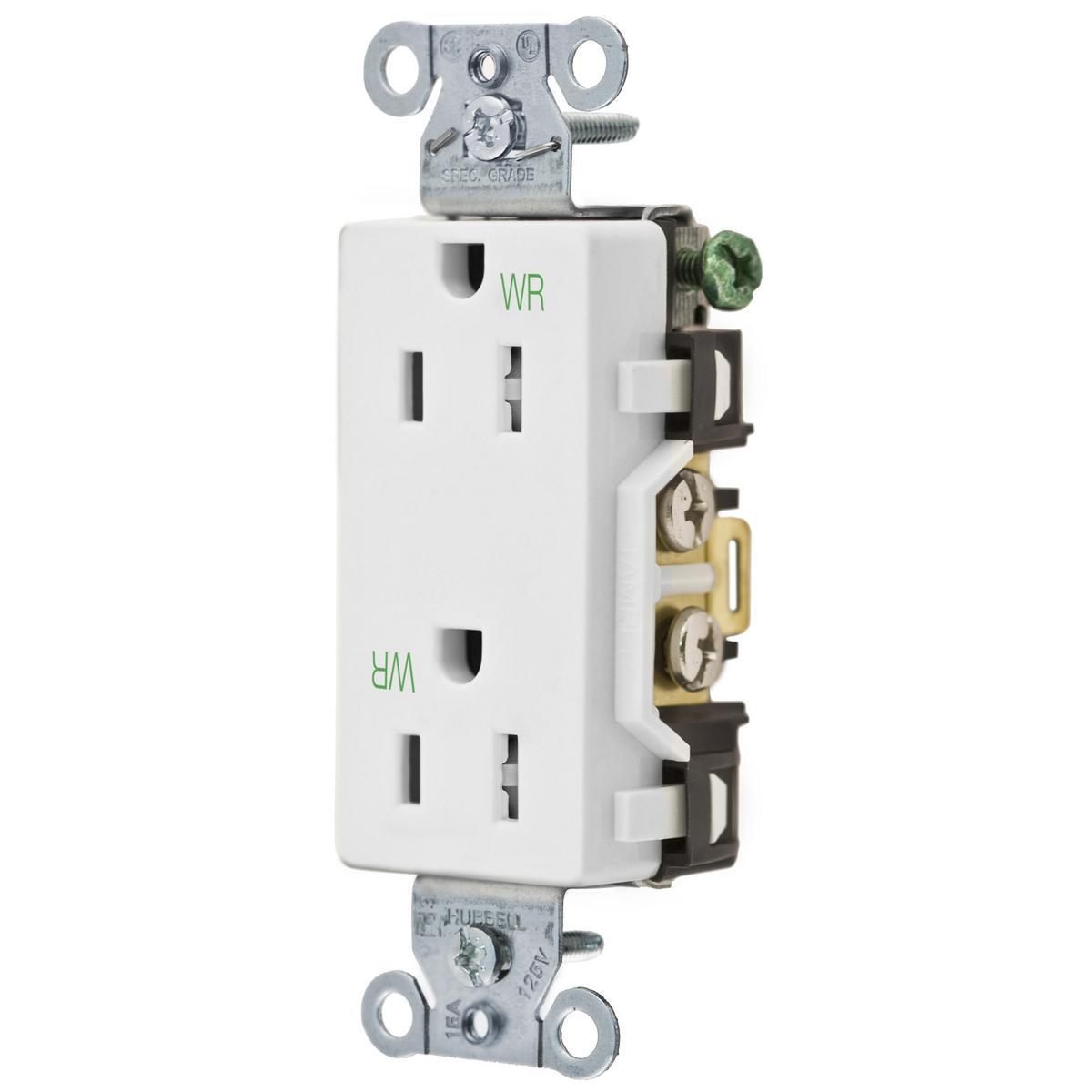

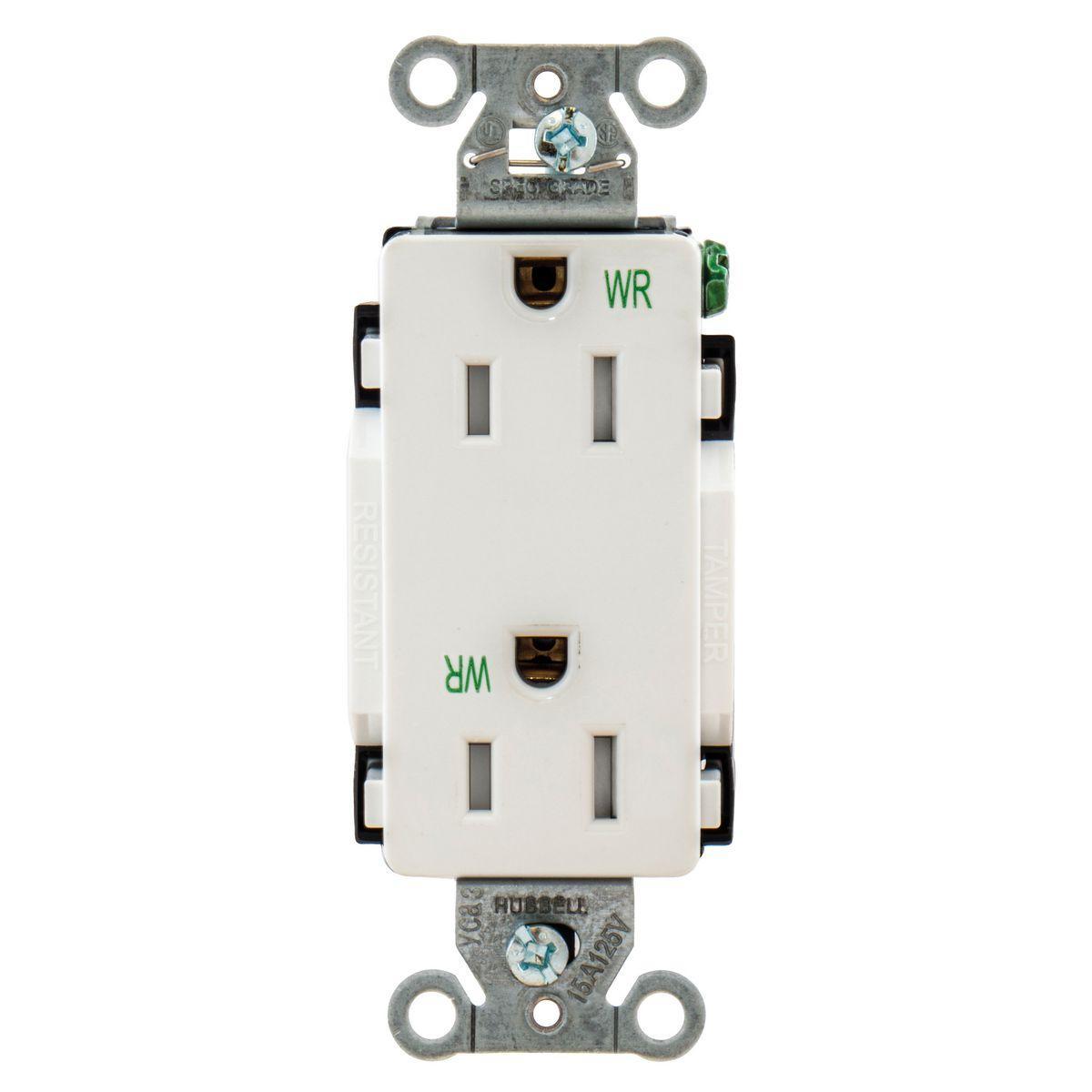

Wiring Device-Kellems Style Line® DR15WHIWRTR 1-Phase Decorator Duplex Standard Tamper/Weather-Resistant Screw Mount Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Brand: Wiring Device-Kellems
Item ID: 398242
MPN: DR15WHIWRTR
Login for Price
Features
- Aesthetic Style Line® decorator design
- Smooth face
- Tamper resistant shutter complies with national electrical code requirements
- Triple wipe contacts
Description

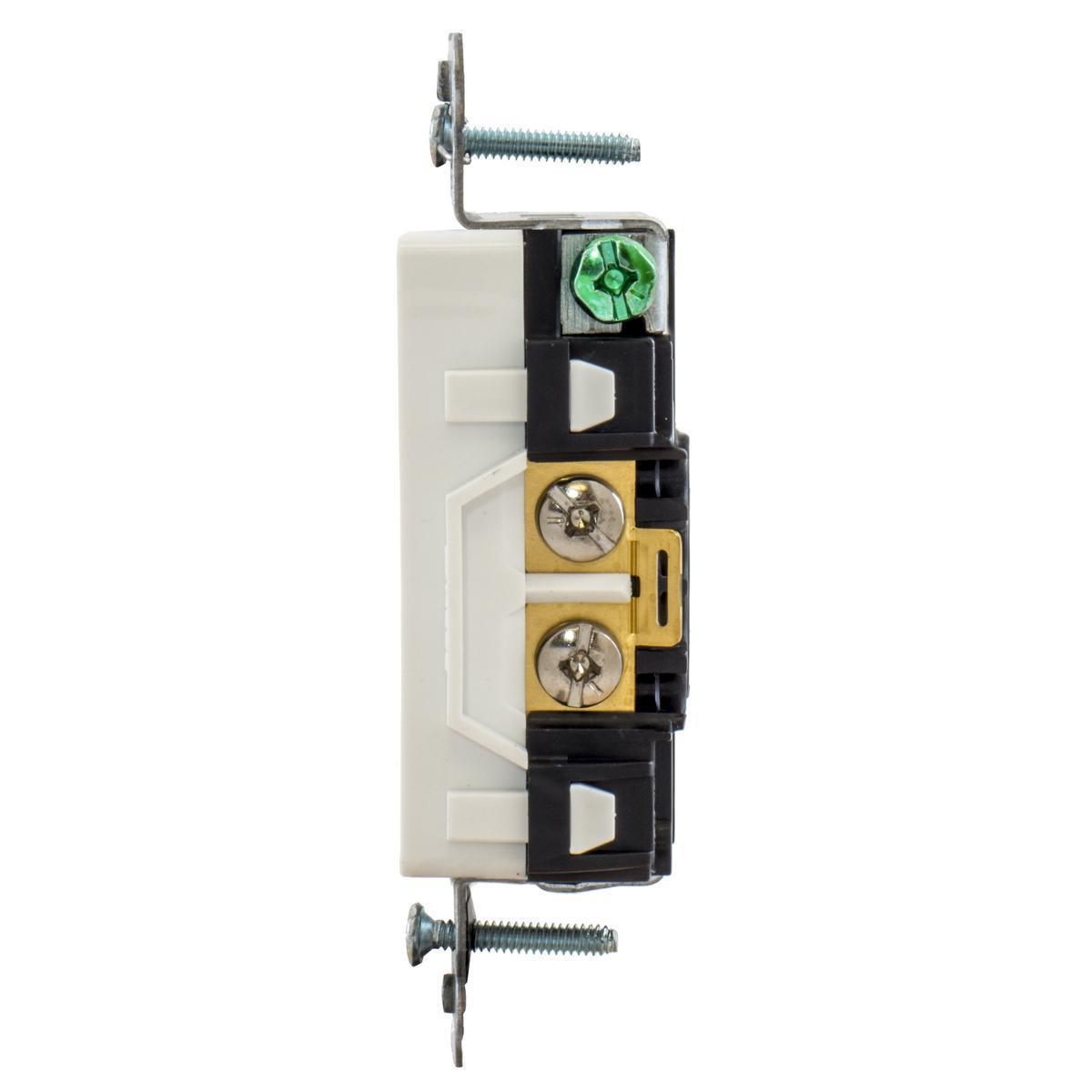

Wiring Device-Kellems Style Line® Straight Blade Receptacle, 1-Phase Decorator Duplex Standard Tamper/Weather-Resistant Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.32 x 1.07 x 3.28 in
Specifications
Amperage Rating |
15 A |
Color |
White |
Dimensions |
1.32 x 1.07 x 3.28 in |
Grade |
Commercial/Industrial/Specification |
Horsepower |
1/2 hp |
Material |
Nylon |
NEMA Rating |
5-15R |
Number of Poles |
2 |
Number of Wires |
3 |
Temperature Rating |
-40 to 75 deg C |
Terminal Type |
Side Wired |
Type |
1-Phase Decorator Duplex Standard Tamper/Weather-Resistant Screw Mount |
Voltage Rating |
125 VAC |
Standard Approval |
RoHS Compliant|CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498 |
Application |
Washdown Areas, Transit Centers, Amusement Parks and Open Air Markets |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_BR15AL_Catalog.pdf
Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_BR15AL_User_Manual.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Wiring_Device_Kellems_DR15IWRTRFull_Engineering_Drawing.pdf
