Killark® GRSS-1M

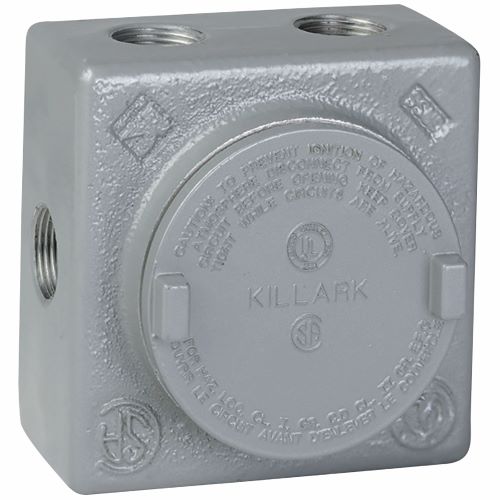

Killark® GRSS-1M Conduit Outlet Box With Blank Cover, Ground Screw, 1/2 in, 3-1/8 in Cover Opening, 29 cu-in, Powder Epoxy Painted

Brand: Killark®

Item ID: 529449

MPN: GRSS-1M

Add To Cart

Features

Internal hubs
Compact design and multiple hub configurations
Furnished with internal ground screw
Cast-in brackets on cover for use with breaker-bar tools
Finished with 7 internal hubs

Description

GR series are the go to outlet bodies for multiple hub configurations and are installed to protect conductors in threaded rigid conduit. Some configurations offer mounting lugs with cover included. All GR series are available in the copper free aluminum with our superior electrostatically applied paint, some are available in our Duraloy® iron.

Killark® Conduit Outlet Box, Series: GR Series, 1/2 in, 3-1/8 in Cover Opening Size, 29 cu-in, Iron, Gray, Powder Epoxy Painted, 4-5/8 in H x 4-5/8 in W x 3-1/2 in D

Specifications

Capacity	29 cu-in
Color	Gray
Cover Opening Size	3-1/8 in
Dimensions	4-5/8 in H x 4-5/8 in W x 3-1/2 in D
Finish	Powder Epoxy Painted
Material	Iron
Series	GR Series
Size	1/2 in
Standard Approval	UL 1203\|UL File No. E10514\|CSA File No. LR11716\|Class I, Div 1, 2, Group C, D\|Class II, Div 1, 2, Group E, F, G\|Class III, Div 1, 2
Application	Used in hazardous areas to protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction and provide access to conductors for maintenance and future system changes
