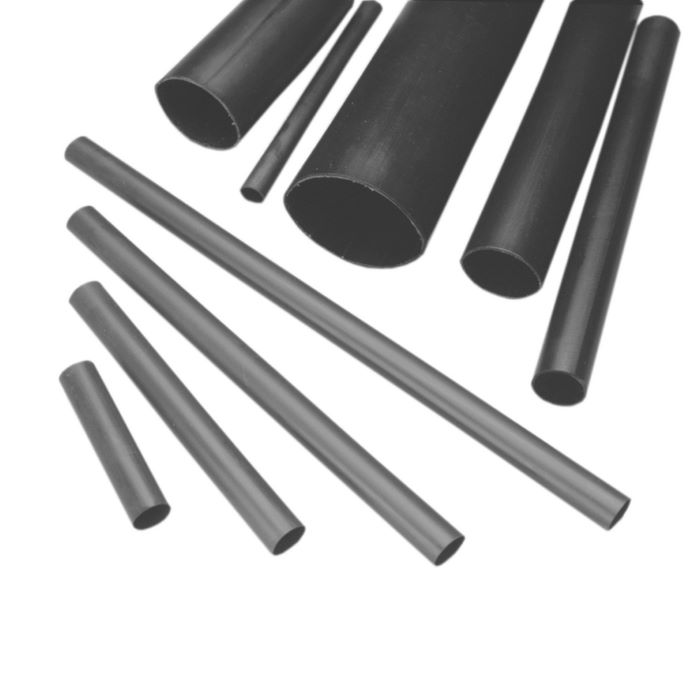

BURNDY® HSB200H12PF2
BURNDY® HSB200H12PF2 Type HS-H-PF Heat Shrink Tubing, 2 in ID Expanded, 3/4 in ID Recovered, 0.16 in THK Wall Recovered, 12 in L, Polyolefin, Black
Brand: BURNDY®
Item ID: 226362
MPN: HSB200H12PF2
Login for Price
Features
- Cross link polyolefin material
- Flame-retardant
- 2 in Dia nominal
- 2 in maximum before shrink
Description
BURNDY® Heat Shrink Tubing, Type HS-H-PF, 1000 VAC, 2 in Inner Dia Expanded, 3/4 in Inner Dia Recovered, Heavy Duty Wall, 0.16 in Wall Thickness Recovered, 250 to 500 kcmil Wire, 1/2 Shrink, 12 in Length, -55 to 135 deg C, 120 deg C Shrink, Polyolefin, Black
Specifications
Color |
Black |
Inner Diameter Expanded |
2 in |
Inner Diameter Recovered |
3/4 in |
Length |
12 in |
Material |
Polyolefin |
Shrink Ratio |
1/2 |
Shrink Temperature |
120 deg C |
Temperature Rating |
-55 to 135 deg C |
Type |
Type HS-H-PF |
Voltage Rating |
1000 VAC |
Wall Thickness Recovered |
0.16 in |
Wall Type |
Heavy Duty |
Wire Size |
250 to 500 kcmil |
Standard Approval |
Meets SAE-AMS-DTL-23053/5 Requirements|RoHS Compliant|UL Listed |
Application |
Direct Burial Cable |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_28f406acb3c1034e9dae2866de94b8ea7ef8aa5b31494abc0ec31b3b662a9c7a.pdf
Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_c5dbf6dc7690e24d703a8c8b8f26580d79c105d8bd52490294c68331fde4990a.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_9e7ed79f9179490873edac064de7bc8e8649352ed2a8b0b088b5358b3b05fd68.pdf
