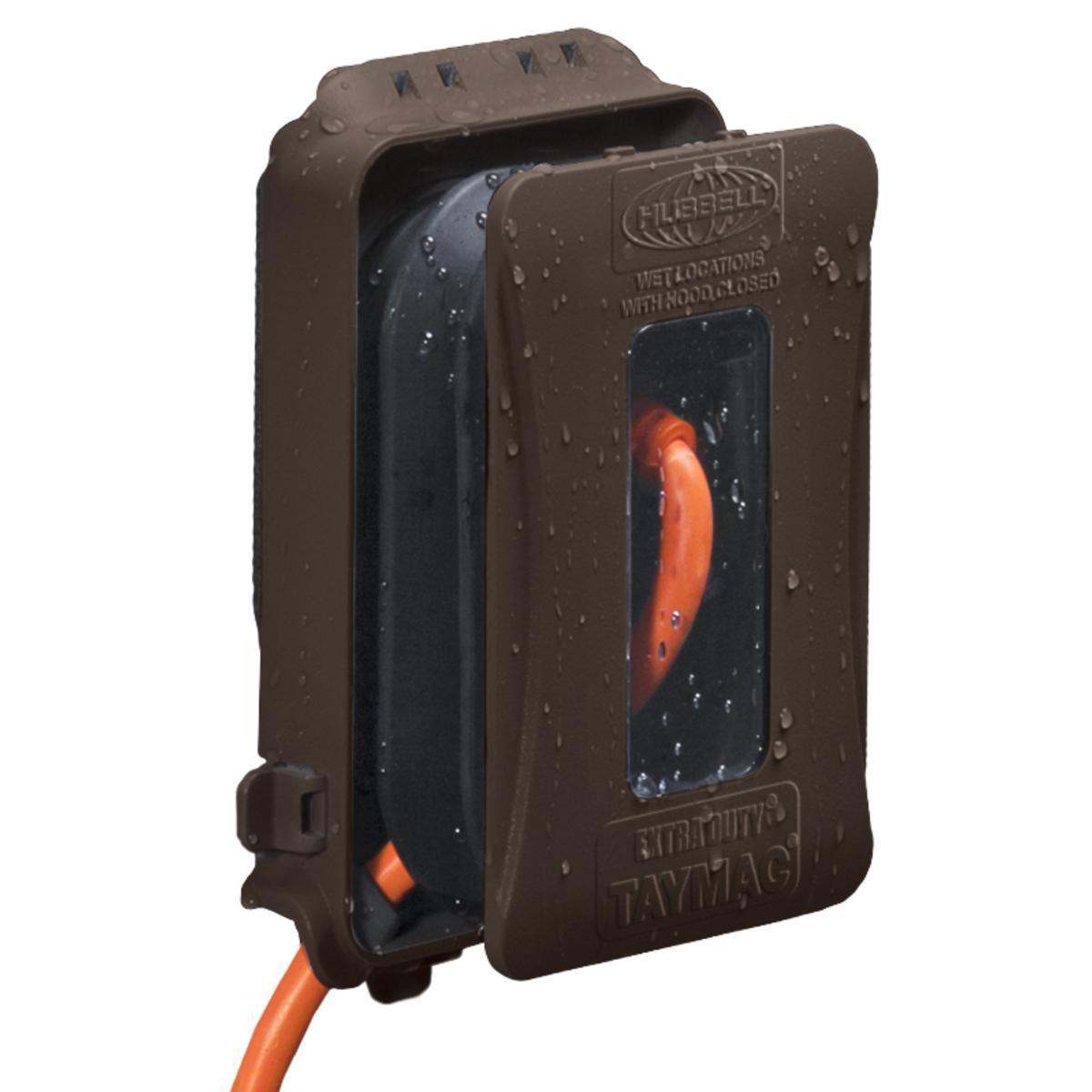

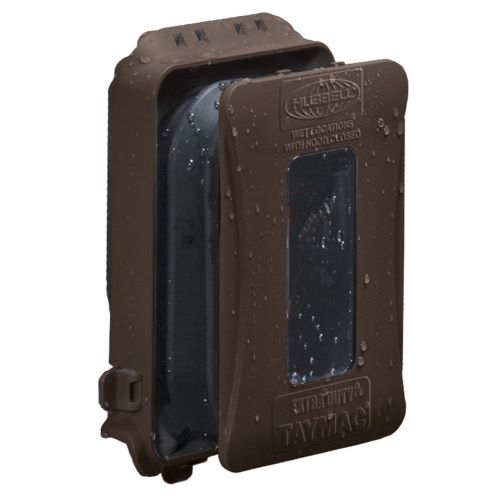

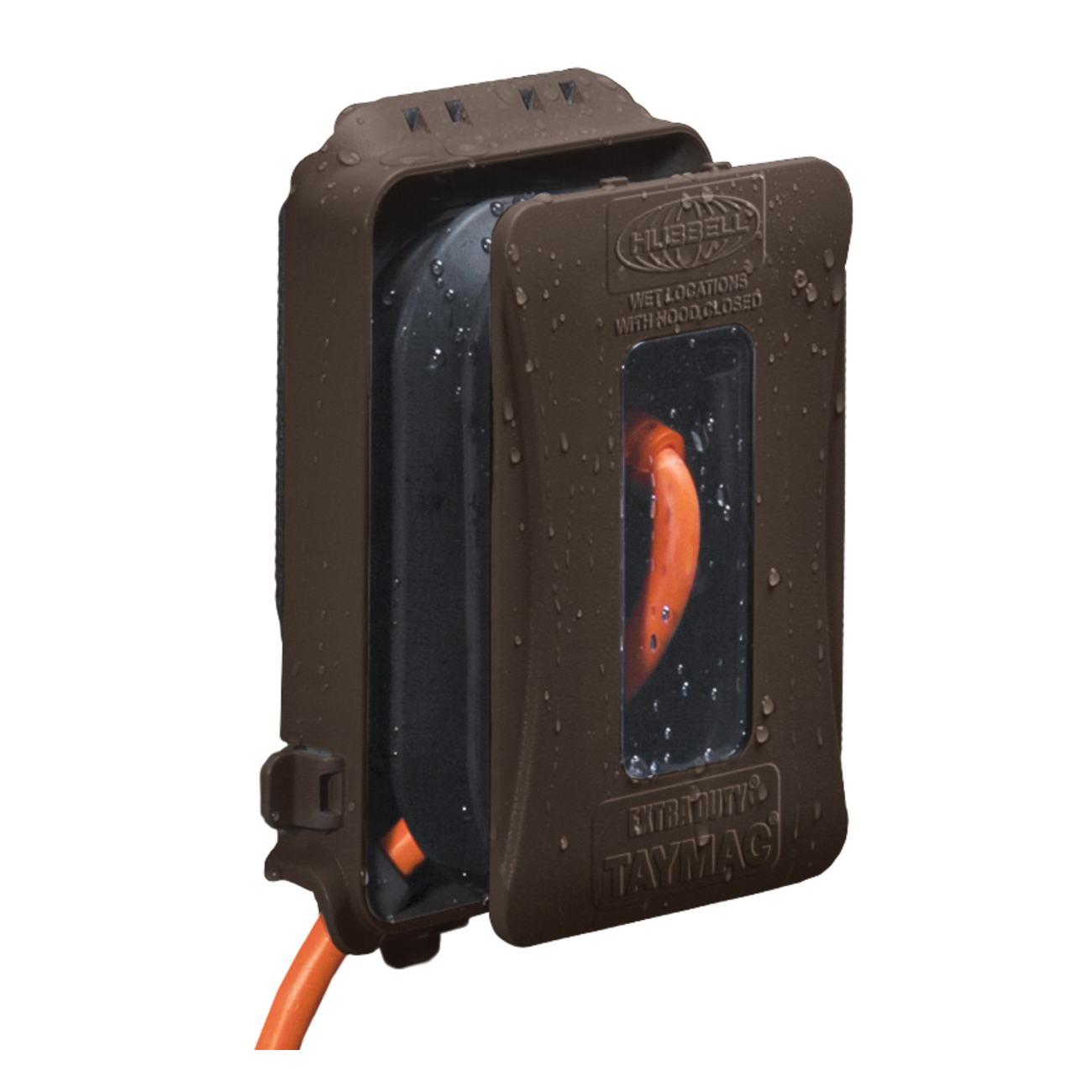

TAYMAC® ML500Z
TAYMAC® EXTRA DUTY® RACO® Outdoor Comforts™ ML500Z 16-in-1 Multi-Directional Non-Metallic Weatherproof While-In-Use Cover, 4.04 in W x 3 in D, Flat Expandable Cover, Neoprene Rubber/Polycarbonate
Brand: TAYMAC®
Item ID: 450041
MPN: ML500Z
Login for Price
Features
- Revolutionary patented design expands from 1 in to 3 in for in use needs
- Ultra rugged polycarbonate and synthetic neoprene rubber that will not dry rot, crack or deteriorate in sunlight
- Panted Quick-Fit™ keyhole mounting system allows installation in under a minute
- Patented universal fit adapter system technology (U-Fast) for 16-in-1 custom device configurations, comes pre-configured for GFCI
- 100% paintable surface
- Clear window allows for quick and easy visual inspection
- Low profile design expands for weatherproof protection while an outlet is in use and EXTRA DUTY® rated to meet NEC
Description
TAYMAC® EXTRA DUTY® RACO® Outdoor Comforts™ While-In-Use Cover, 16-in-1 Multi-Directional Non-Metallic Weatherproof, 1 Outlet, 1 Gang, 4.04 in Width, 3 in Depth, Flat Expandable Cover, Horizontal/Vertical Mounting, Key Hole Mounting, 74.416 cu-in Capacity, Neoprene Rubber/Polycarbonate, Bronze
Specifications
Capacity |
74.416 cu-in |
Color |
Bronze |
Cover Type |
Flat Expandable |
Depth |
3 in |
Material |
Neoprene Rubber/Polycarbonate |
Mounting Orientation |
Horizontal/Vertical |
Mounting Type |
Key Hole |
Number of Gangs |
1 |
Number of Outlets |
1 |
Type |
16-in-1 Multi-Directional Non-Metallic Weatherproof |
Width |
4.04 in |
Standard Approval |
UL File No. E116141|cULus Listed|PROP65: Reproductive Harm. For more information go to www.P65Warnings.ca.gov|NEC Article 406.9 2014 |
Application |
Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/TAYMAC_GS100_Catalog.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_ff0b0ef5a71969e5813d8e36cfcb5bd00a500083ae92f08dbe764d9a0463819d.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_10e8060f781cf4cc5d956f3df5c901021b87046c6c56a5dd1919b4d0b41da752.pdf
