Acme Electric® T111683

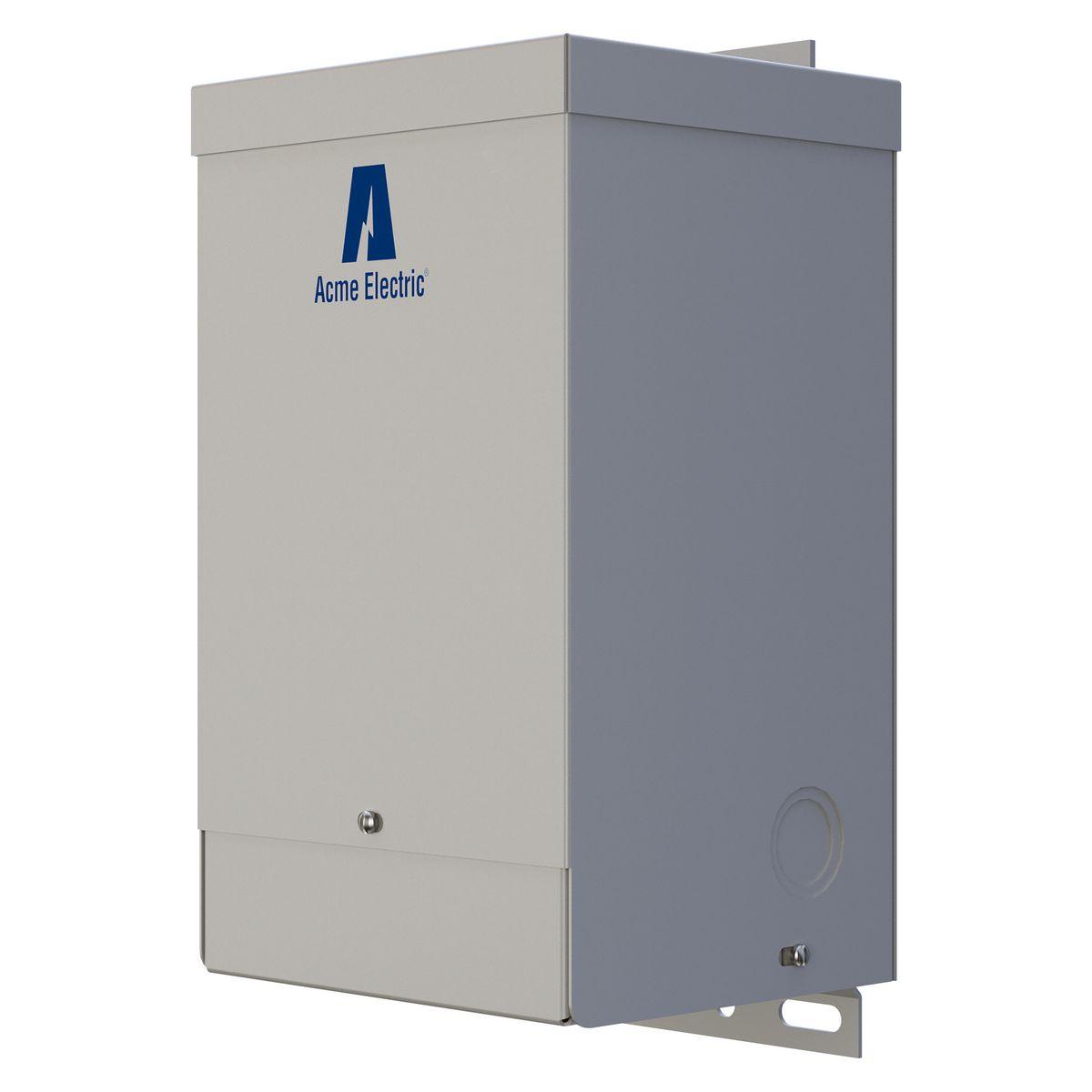

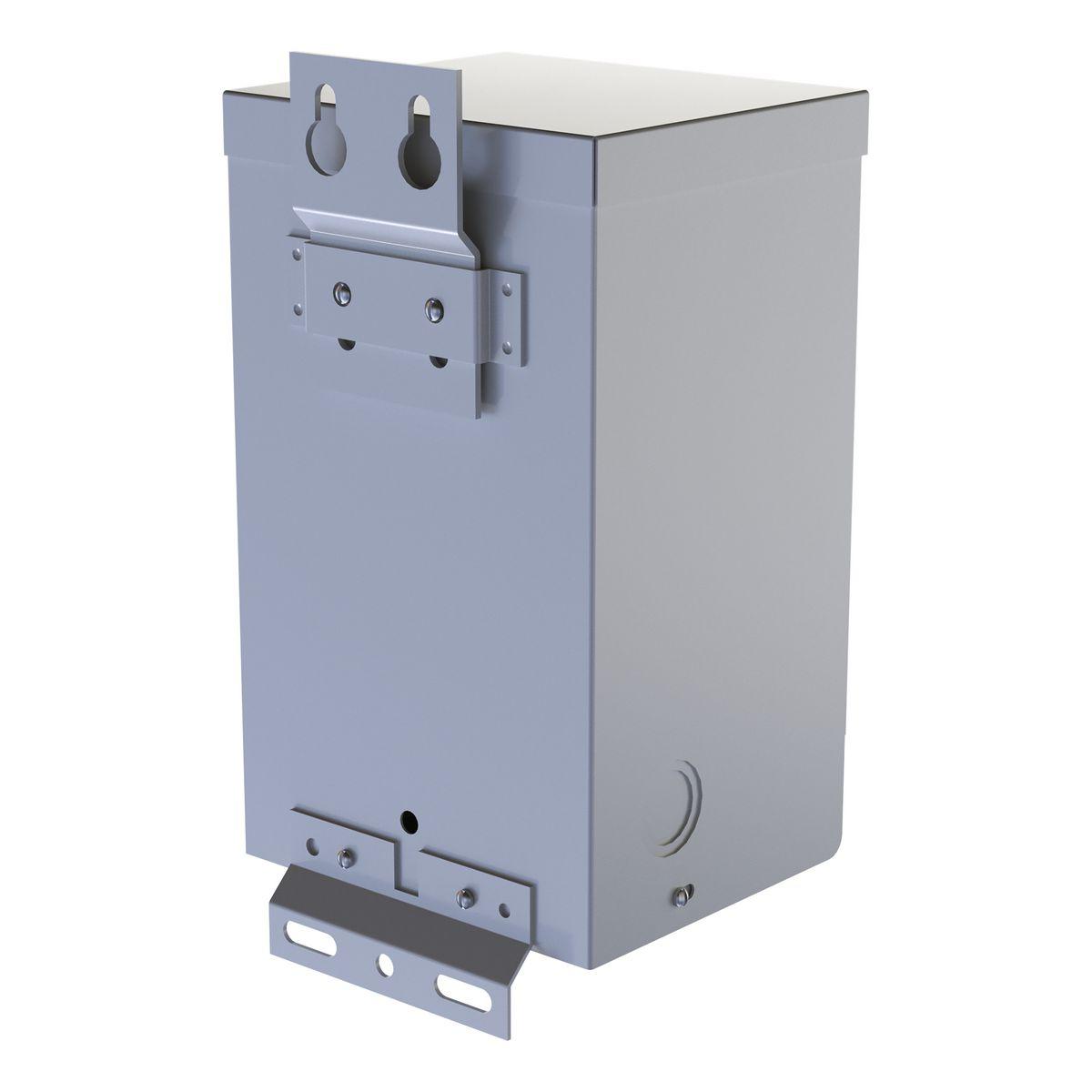

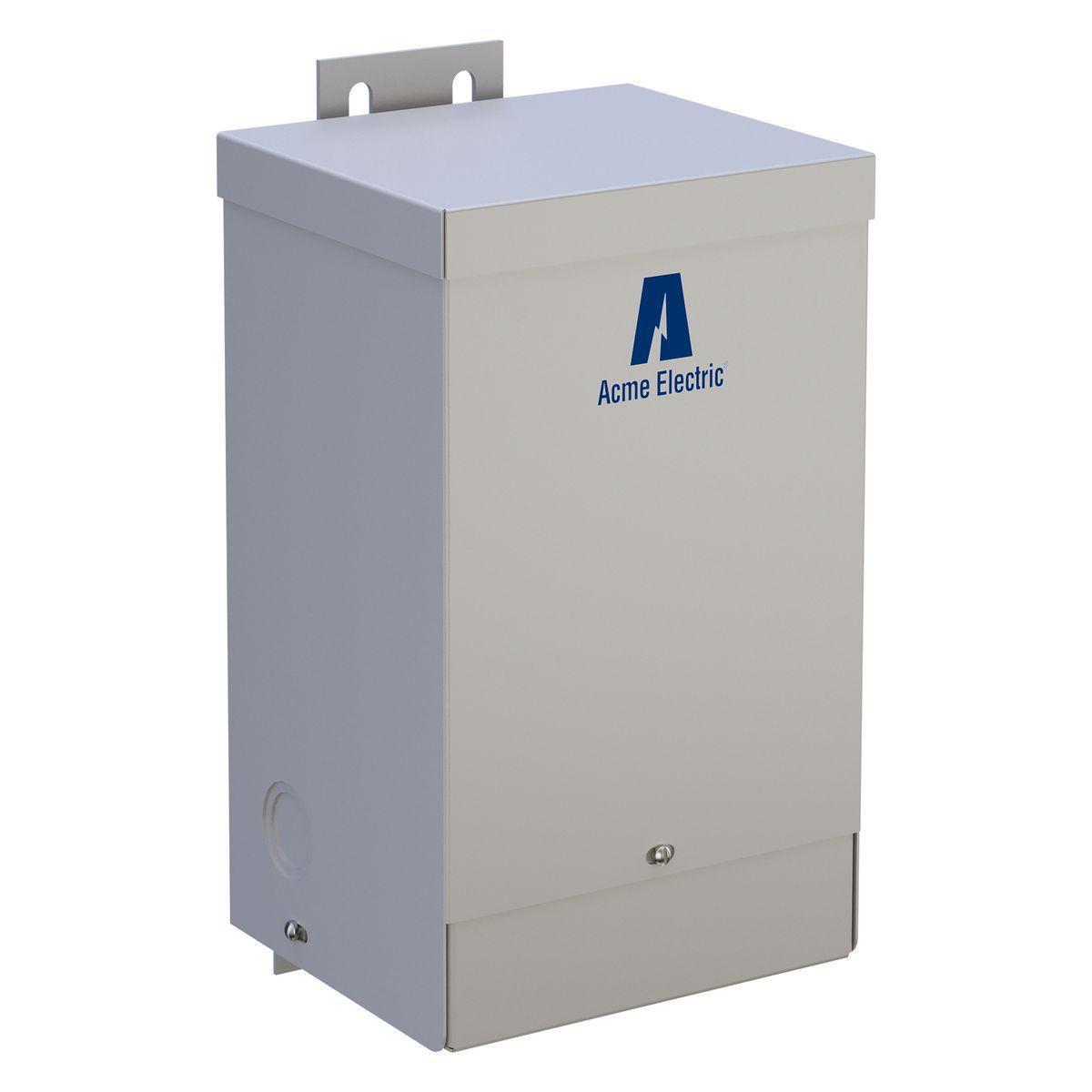

Acme Electric® T111683 Encapsulated Buck Boost Transformer, 120/240 VAC Primary, 12/24 VDC Secondary, 10 kVA Power Rating, 60 Hz, 1 Phase
Brand: Acme Electric®
Item ID: 493
MPN: T111683
Login for Price
Features
- Easily configured for numerous applications
- Lower cost solution
- 5-10 times increase in kVA
- The most common example is boosting 208 - 230 VAC, usually to operate a 230 VAC motor such as an air-conditioner compressor, from a 208 VAC supply line
- Buck-boost transformers are an economical way to correct a potentially very serious problem
- Anytime a line voltage change in the 5 to 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense
- Boost voltage 10 kVA/41.67 A, 220 V line and 242 VAC load
Description
Acme Electric® Buck Boost Transformer, Encapsulated, 120/240 VAC Primary, 12/24 VDC Secondary, 10 kVA, 60 Hz, 1 ph, 83.2 A at 12 V/41.6 A at 24 V Output Maximum, Wire Lead/Screw, Wall Mount, Class H/180 deg C, NEMA 3R, 115 deg C, Steel Housing, 5.13 in L x 5.5 in W x 10.5 in H
Specifications
Connection Type |
Wire Lead/Screw |
Dimensions |
5.13 in L x 5.5 in W x 10.5 in H |
Enclosure Type |
NEMA 3R |
Frequency Rating |
60 Hz |
Housing Material |
Steel |
Insulation |
Class H/180 deg C |
Maximum Amperage Rating |
83.2 A at 12 V/41.6 A at 24 V Output |
Mounting Type |
Wall |
Phase |
1 |
Power Rating |
10 kVA |
Primary Voltage |
120/240 VAC |
Secondary Voltage |
12/24 VDC |
Temperature Rating |
115 deg C |
Type |
Encapsulated |
Standard Approval |
UL 506|UL File No. E79947V1|UL Control File No. 50B8|UL Insulation File No. X3221|CSA Certified|OSHA Compliant|ANSI Specified|IEEE Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Application |
For low voltage lighting or control circuitry applications |
