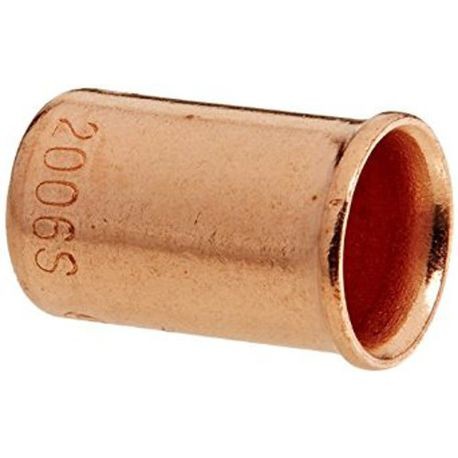

BUCHANAN 2006S
BUCHANAN 2006S Splice Cap Crimp Connector, 18 to 10 AWG Solid Copper Wire, Non-Insulated Insulation, Copper
Brand: BUCHANAN
Item ID: 5692
MPN: 2006S
Login for Price
Features
- Solid copper sleeve require less crimping pressure and resist corrosion in harsh environments
- Designed for making fast, permanent, pressure-type connections
Description
Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
BUCHANAN Crimp Connector, Splice Cap, Solid Copper Wire, 18 to 10 AWG Wire, Non-Insulated Insulation, 600 VAC, (2) 18 AWG Minimum, (4) 12 AWG Max Wire Combination, 221 deg F, Copper, Zinc Plated, 0.211 in Dia x 0.425 in L
Specifications
Dimensions |
0.211 in Dia x 0.425 in L |
Finish |
Zinc Plated |
Insulation Type |
Non-Insulated |
Material |
Copper |
Specifications |
(2) 18 AWG Minimum, (4) 12 AWG Max Wire Combination |
Temperature Rating |
221 deg F |
Type |
Splice Cap |
Voltage Rating |
600 VAC |
Wire Size |
18 to 10 AWG |
Wire Type |
Solid Copper |
Standard Approval |
RoHS Compliant|CSA C22.2 No. 188|UL 486C|W-S-61D Federal Specification |
Application |
For fast, permanent, pressure type connections and C24 crimp tools |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_2006S_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_2006S_RoHS.pdf
BUCHANAN 2006S
