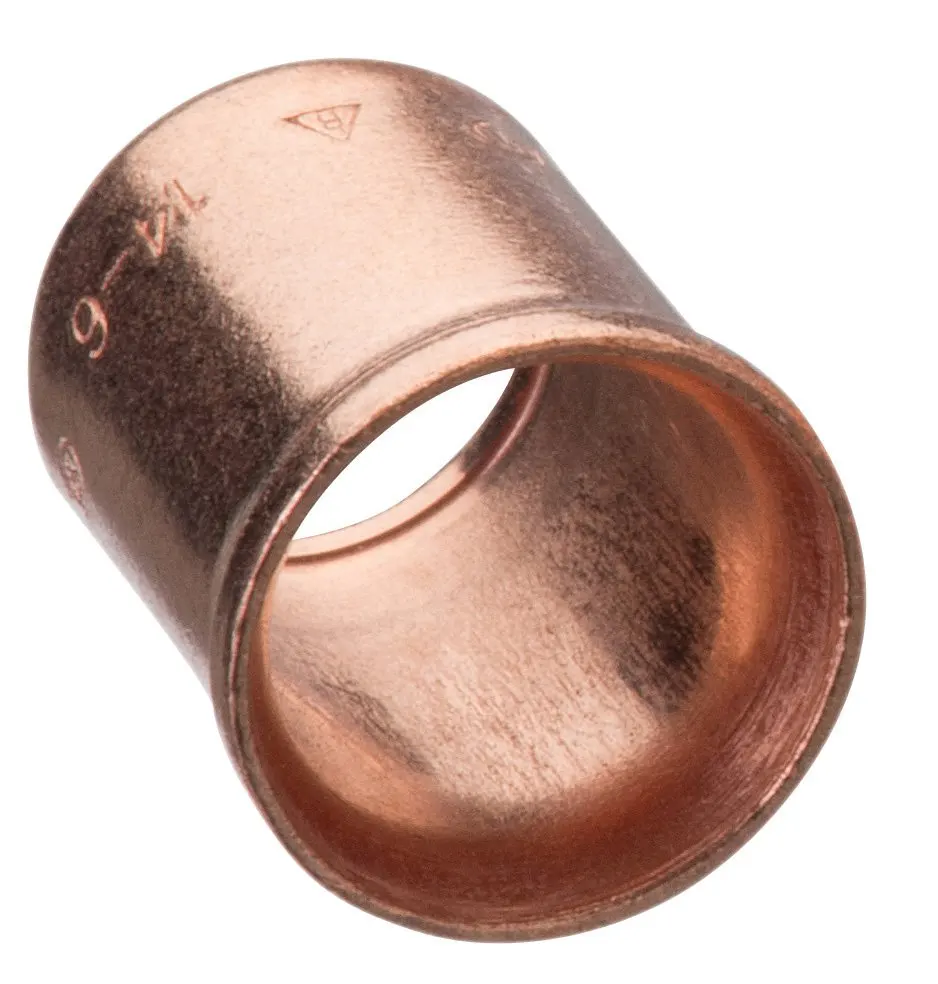

BUCHANAN 2011S
BUCHANAN 2011S Non Insulated Splice Cap Crimp Connector, 14 to 4 AWG, 10/2 AWG Minimum, 6/2 AWG Maximum Conductor, Copper
Brand: BUCHANAN
Item ID: 5694
MPN: 2011S
Login for Price
Features
- Solid copper sleeve require less crimping pressure and resist corrosion in harsh environments
- Designed for fast, permanent, pressure type connections
Description
Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
BUCHANAN Splice Cap Crimp Connector, Non Insulated, 14 to 4 AWG, 10/2 AWG Minimum, 6/2 AWG Maximum Conductor, 600 VAC, Copper, Zinc Plated
Specifications
Conductor Size |
14 to 4 AWG, 10/2 AWG Minimum, 6/2 AWG Maximum |
Finish |
Zinc Plated |
Material |
Copper |
Type |
Non Insulated |
Voltage Rating |
600 VAC |
Standard Approval |
RoHS Compliant|UL 486C Listed|CSA22.2 #188 Certified, Federal Specification W-S-61D |
Application |
For C24 crimp tool |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/BUCHANAN_2011S_User_Manual.pdf
