IDEAL® 30-1033

• No twist connection reduces repetitive motion fatigue
• Low insertion force for fast and easy connections
• Compact size makes installation easy
• Clear shell gives visual verification of connection
• 600 VAC maximum building wire, 1000 VAC maximum signs and lighting fixtures
• Tough, flame-retardant shell rated at 105 deg C
• Accepts any combination of 12 to 18 AWG solid or tin bonded copper conductors
• Electrolytic tin plated copper bus system
• Stainless steel inserts restrict pull-out
• Color coded for easy identification
• Built-in strip length gauge
• Ground rating eliminates need for special "ground" connector
• 20 to 12 AWG solid, 16 to 12 AWG (19 strand or less) 18 AWG (7 strand) stranded, 18 to 14 AWG (19 strand or less) stranded (tin bonded)

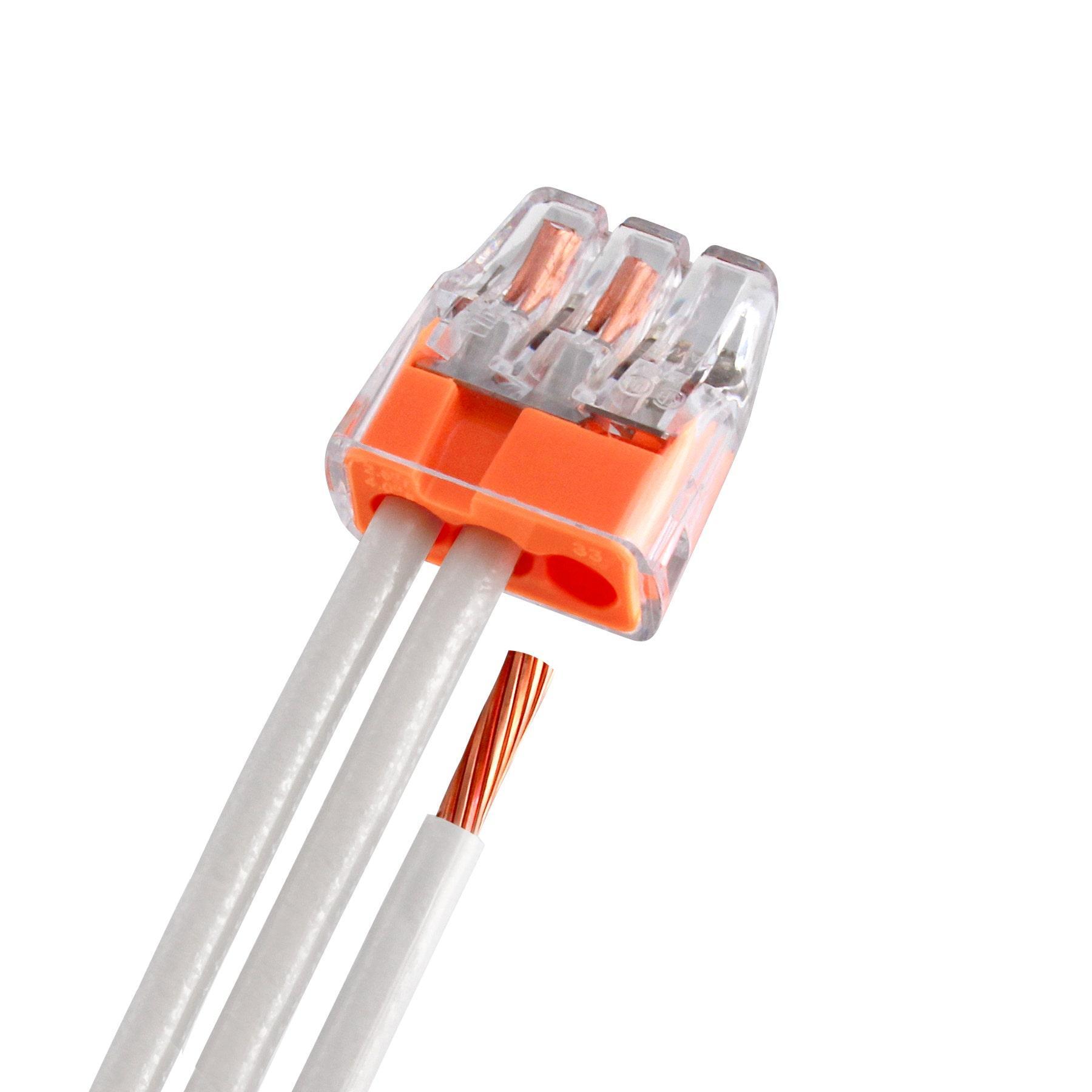

The In-Sure™ push-in wire connector from IDEAL®. The fastest, easiest, no-twist push-in connector. Perfect for OEM lighting manufacturing, prefabricated wiring systems and other OEM and branch circuit wiring applications. The clear polycarbonate housing allows visual verification of every connection. Simply glide the wire in the low insertion force makes it easy. In-Sure™ also allows removal of the wire after the connection has been established. UL Listed 94 D-Z, CSA Certified, and rated to 600 VAC and 105 deg C. In-Sure™ saves time and improves productivity while perfecting connections.

IDEAL® In-Sure™ Push-In Wire Connector, Solid/Stranded/Tin-Bonded Wire, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Wire, 600 VAC, Specifications: 3 Ports, 3/8 to 1/2 in Strip Length, 221 deg F, Nylon/Polycarbonate, Orange, Tin Plated, 0.78 in L x 0.69 in W x 0.38 in H Dimensions
