IDEAL® 30-454

• Specially designed contoured wings provide a secure grip for extra leverage on maximum wire combinations
• Live action spring expands to accept wire shape and size
• No pre-twisting required
• Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
• For tough environmental conditions
• Square wire spring threads directly onto conductors for fast and secure connections
• High-leverage, contoured wing provides superior torque on every twist
• Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
• Copolymer shell expands for smooth, progressive tightening providing dependable connections
• Removable for repeat usage on same size or larger combinations

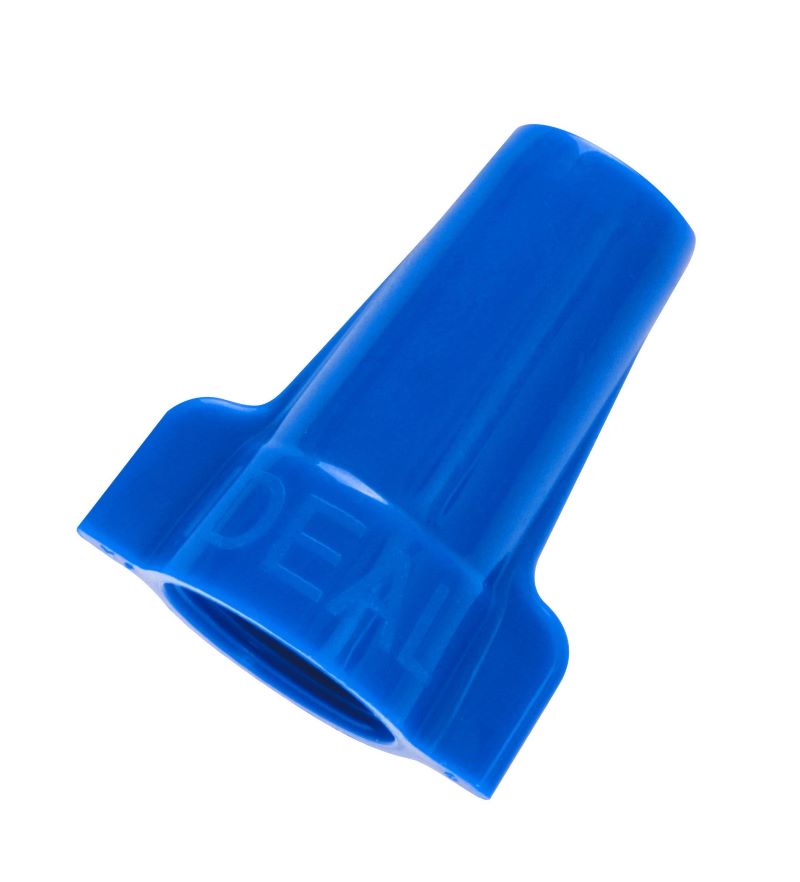

Wing-Nut® wire connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.

IDEAL® Wing-Nut® Wire Connector, Flame-Retardant, Series: 454®, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 14 to 6 AWG Wire, 600 VAC, Specifications: 7/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 12 to 3 AWG Minimum, 6 to 1 AWG with 8 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Blue, Zinc Plated, 0.78 in Dia x 1.2 in W x 1.45 in H Dimensions
