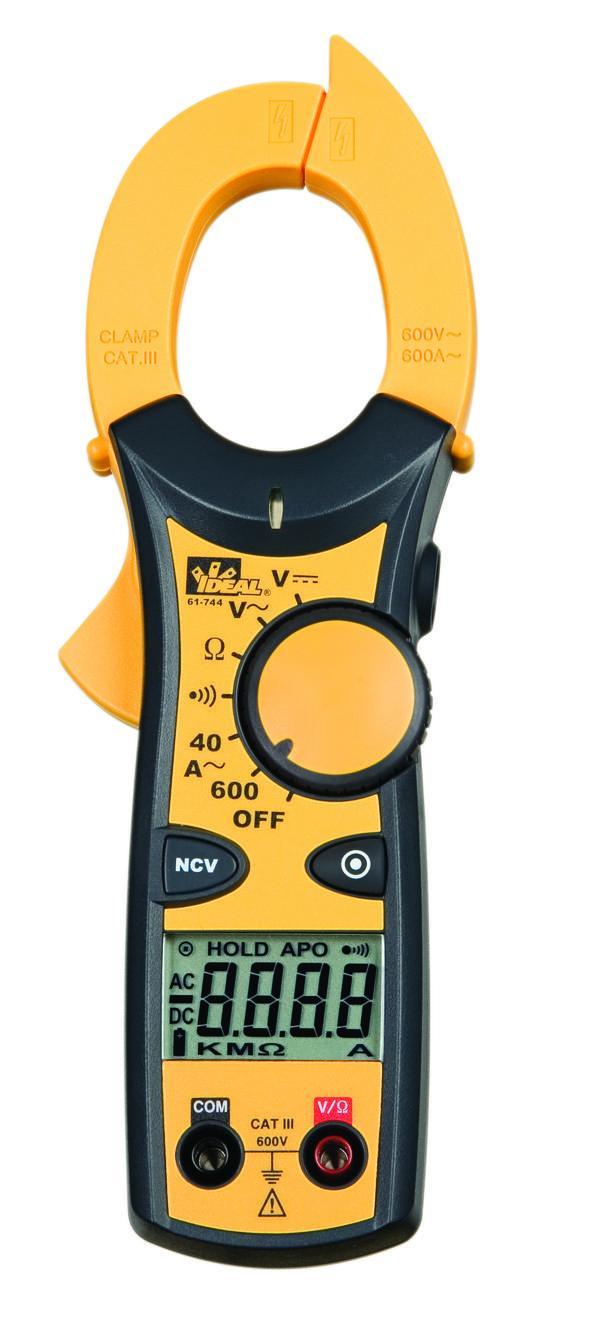

IDEAL® 61-744
IDEAL® Clamp-Pro™ 61-744 Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC, 400 Ohm to 400 MOhm, 1-1/4 in Jaw, LCD Display
Brand: IDEAL®
Item ID: 376923
MPN: 61-744
Login for Price
Features
- Measures up to 600 A AC
- Non contact voltage indicator (70 to 600 VAC)
- Tapered jaws with hook tip
- Auto/manual ranging
- Data hold
- Auto power off
- Low battery indicator
Description
IDEAL® Clamp-Pro™ Clamp Meter, 40/400/600 A AC, 400/600 VAC/VDC Electrical Rating, 400 Ohm to 400 MOhm Resistance, 1-1/4 in Jaw, 4000 Count, LCD Display, 1.7/3% + 6 Digits AC Current Accuracy, 1.2% + 5 Digits, 1.5% + 5 Digits AC, 0.5% + 5 Digits DC Voltage Accuracy, Safety Rating: CAT III 600 VAC, 1.5 VDC AAA Alkaline Battery Power Source, 32 to 122 deg F Operating, 8 in H x 2.6 in W x 1.5 in D Dimensions
Specifications
AC Current Accuracy |
1.7/3% + 6 Digits AC |
Counts |
4000 |
Dimensions |
8 in H x 2.6 in W x 1.5 in D |
Display Type |
LCD |
Electrical Ratings |
40/400/600 A AC, 400/600 VAC/VDC |
Jaw Capacity |
1-1/4 in |
Operating Temperature |
32 to 122 deg F |
Power Source |
1.5 VDC AAA Alkaline Battery |
Resistance |
400 Ohm to 400 MOhm |
Safety Rating |
CAT III 600 VAC |
Voltage Accuracy |
1.2% + 5 Digits, 1.5% + 5 Digits AC, 0.5% + 5 Digits DC |
Standard Approval |
RoHS Compliant|UL 61010|CE Certified |
Documentation
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_744_User_Manual.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_61_744_RoHS.pdf
VIDEO LINK https://vimeo.com/769903156
