IDEAL® 774045

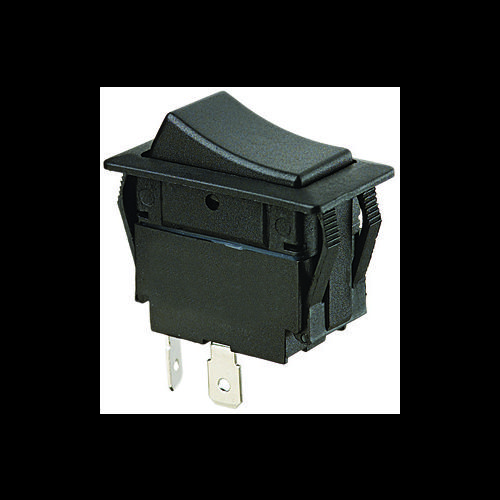

IDEAL® 774045 Full-Size Rocker Switch, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC, SPST Contact, 1 Poles
Brand: IDEAL®
Item ID: 357154
MPN: 774045
Login for Price
Features
- Moisture- and dust-resistant
- Suitable for low-voltage DC applications
Description
IDEAL® Rocker Switch, Full-Size, 20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC Electrical Rating, SPST Contact Configuration, 1 Pole, On/Off Operational Mode, Spade Connection, Panel Mounting, Black, Environmental Conditions: 32 to 185 deg F Operating Temperature, 1.7 in L x 0.97 in W x 1.09 in H
Specifications
Color |
Black |
Connection |
Spade |
Contact Configuration |
SPST |
Dimensions |
1.7 in L x 0.97 in W x 1.09 in H |
Electrical Ratings |
20 A at 125 VAC, 15 A at 227 VAC, 2 A at 110 to 250 VAC |
Environmental Conditions |
32 to 185 deg F Operating Temperature |
Mounting |
Panel |
Number of Poles |
1 |
Operational Mode |
ON/OFF |
Type |
Full-Size |
Standard Approval |
RoHS Compliant|CSA Certified|UL Recognized |
Application |
Commercial Appliances, Industrial Controls, Automotive, Marine Application and Low Voltage DC Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_30_071_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_774045_Catalog.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_774045_Catalog.pdf
RoHS https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_785e8886fd53fb87bc2bf98a888d86b1bc529daf979b10812668da2d0d57e56c.PDF
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_774035_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_774045_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDEAL_774045_Specification_Sheet.pdf
