IDEAL® 774085

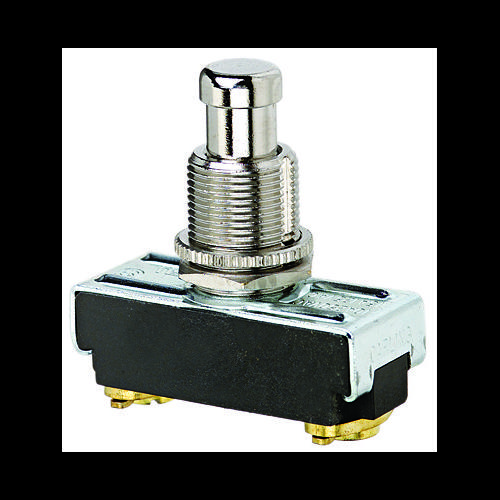

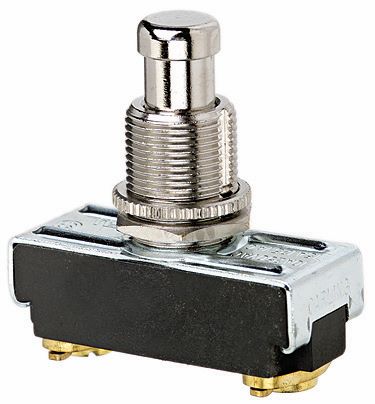

IDEAL® 774085 Push Button Switch, 125/250 VAC, 15/10 A, SPST/NO Contact
Brand: IDEAL®
Item ID: 377052
MPN: 774085
Login for Price
Features
- Momentary action in on stage
- Great for household appliances, lamps and motor controls
- Available in normally open, normally closed and standard On-Off circuitry
- Wire leads are 18 AWG, 6 in stripped wire
- 1/2 in diameter mounting hole
Description
IDEAL® Push Button Switch, 125/250 VAC, 15/10 A, SPST/NO Contact Configuration, 1 Pole, Momentary ON/OFF Action, 1.38 in L x 0.58 in W x 0.6 in H Dimensions
Specifications
Action |
Momentary ON/OFF |
Amperage Rating |
15/10 A |
Contact Configuration |
SPST/NO |
Dimensions |
1.38 in L x 0.58 in W x 0.6 in H |
Number of Poles |
1 |
Voltage Rating |
125/250 VAC |
Standard Approval |
RoHS Compliant|CSA Certified|UL Recognized |
Application |
Household Appliances, Lamps and Motor Controls |
Documentation
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_785e8886fd53fb87bc2bf98a888d86b1bc529daf979b10812668da2d0d57e56c.PDF https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_785e8886fd53fb87bc2bf98a888d86b1bc529daf979b10812668da2d0d57e56c.PDF
