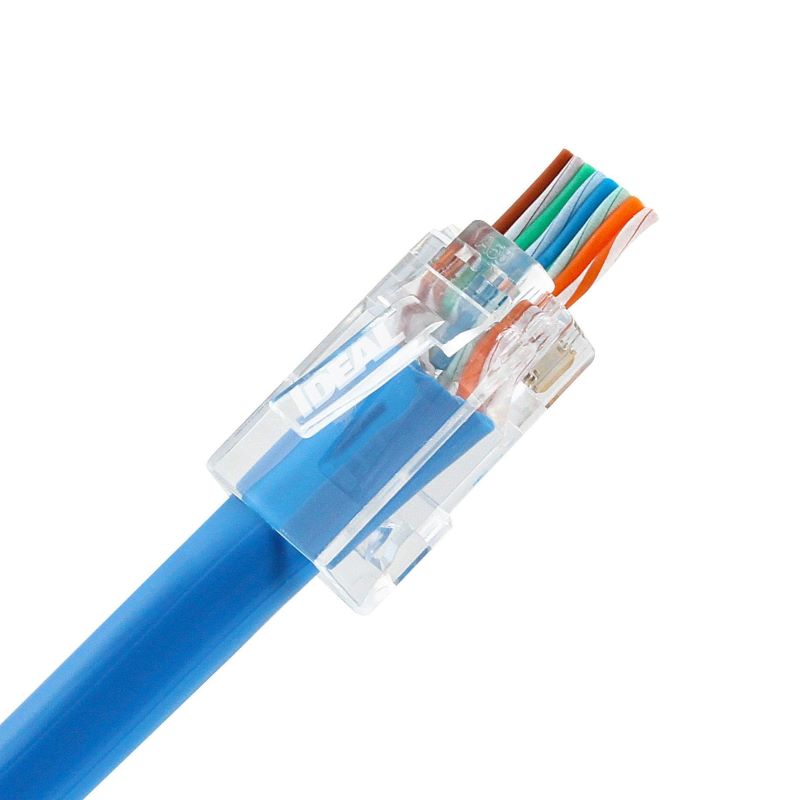

IDEAL® 85-377

• New feed-through design simplifies connector to cable assembly
• Flush cut of excess conductors minimizes inadvertent contact outside of the plug
• Designed for best performance when used with the IDEAL® FT-45™ crimp tool (30-495)
• 8-position, 8-contact RJ45 modular plug for cat 5e, 100 Ohm balanced twisted pair 250 MHz cables
• 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles

The IDEAL® feed-through cat 6 8P8C (eight position/eight contact) modular plug connector is the first feed-through style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45™ tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. conductor spacing is maintained for reliable performance in PoE and data applications.

IDEAL® Modular Plug, 8-Postion 8-Contact RJ45 Feed-Thru, Twisted Pair Cable, 0.28 in OD Cable, Solid/Stranded Conductor, 24 to 23 AWG Conductor, Cat 6 LAN Category, 100 Ohm Impedance, Clear, Plastic
