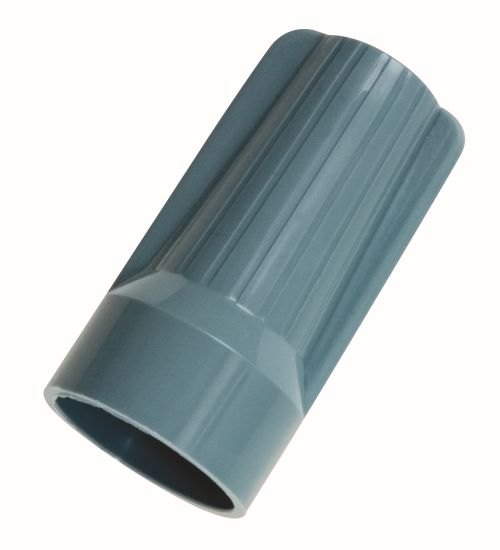

BUCHANAN B4-1

• Low profile design gets you into tight spaces and hard to reach spots comfortably
• Slim, classic fin design provides secure grip for extra leverage on maximum wire combinations
• Square wire spring threads directly onto conductors for fast and secure connections
• Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection
• Live action spring expands to accept wire shape and size
• No pre-twisting required
• Unique, space saving profile is perfect for old work or shallow boxes
• Easily removed for repeat usage on same size or larger wire combinations
• 1000 V maximum in fixtures and signs
• Green-B designed for making ground connections and bonding non-metallic sheathed cable

B-CAP® wire connector gets you in those hard-to-reach spots comfortably, especially when you're retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP® a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (red model B2).

BUCHANAN B-CAP® Wire Connector, Flame-Retardant, Series: B4, Fin Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 14 to 6 AWG Wire, 600 VAC, Specifications: 3/4 in Wire Strip, 2 to 6 Conductors, 12 to 2 AWG Minimum, 6 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Blue/Gray, 0.76 in Dia x 1.51 in H Dimensions
