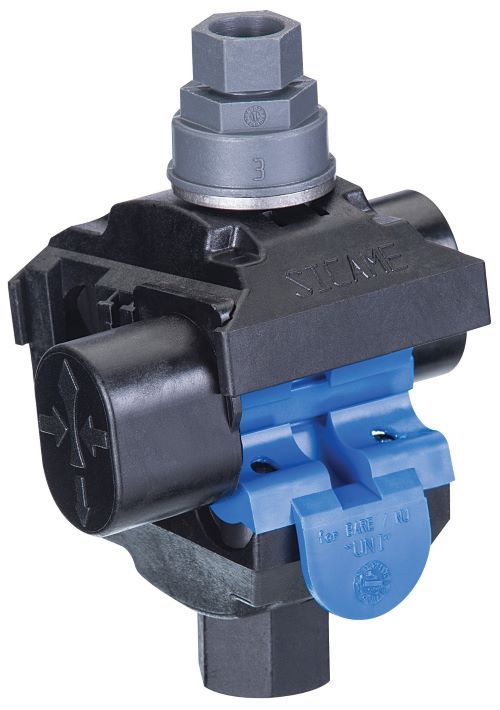

BUCHANAN BTC500-14

• Breakaway torque nut snaps off when UL torque requirements are met
• Second nut remains for easy connector removal
• Self-insulated housing eliminates the need for tape
• Safely installs on energized systems
• Grease-filled end cap seals end of conductor for superior weather protection
• Grease-filled boots protect copper teeth from corrosion and prevent arcing
• Hardened copper teeth pierce insulation and bite into conductors

Safe, dependable and easy. The Buchanan B-TAP Insulation Piercing Connector offers a breakaway torque nut that guarantees a perfect connection every time, no more guesswork. It simply snaps off when UL torque requirements are met. The grease-filled rubber end caps provide superior water and corrosion resistance, while the insulationpiercing design eliminates downtime and power interruptions. That translates into a 60% installed cost savings compared to split bolts. Installation is easy; all you need is a standard socket or wrench. B-TAP Connectors can be safely installed on energized systems, eliminating power interruptions and downtime.

BUCHANAN B-TAP® Piercing Insulated Tap Connector, Insulation-Piercing, Solid/Stranded Conductor, 4/0 AWG to 500 kcmil Main, 1/0 AWG to 350 kcmil Tap Conductor, 600 V AC, Specifications: 1-Bolt, 2.2 in-lb Torque, 1/2 in Socket, 90 deg C, 2.5 in W x 2.2 in D x 3.7 in H Dimensions
