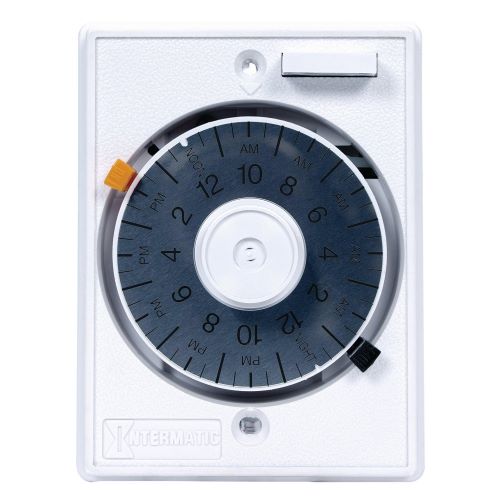

Intermatic® E1010

Intermatic® E1010 E1000 Heavy Duty Mechanical Timer Switch With Permanent Tripper, 1/2 to 22-1/2 hr Setting, 125 VAC, 1 hp, 1NO/SPST Contact, 1 Poles

Brand: Intermatic®

Item ID: 14979

MPN: E1010

Login for Price

Features

  • E1010 includes one ON/OFF permanently attached tripper for single ON/OFF control per 24 hr period
  • E1020 includes two ON/OFF trippers and can accommodate up to 12 ON/OFF trippers
  • Programmable in 30 min intervals
  • Turns ON/OFF heavy-duty loads for energy savings, security and convenience
  • Mounts to any standard junction box
  • Requires neutral connection

Description

These Heavy-Duty In-Wall Timers are ideal for turning on lights, fans, pumps and other heavy duty loads for energy savings, security and convenience. The timer provides up to 12 ON and 12 OFF operations per day.

Intermatic® Mechanical Timer Switch, Heavy Duty, Series: E1000, 125 VAC, 15 A, 1 hp, 1 Pole, 1NO/SPST Contact Form, 1/2 to 22-1/2 hr Time Setting, NEMA 4X/6 Enclosure, Wall Mounting, 4-1/4 in H x 3-1/4 in W x 1-3/8 in D Dimensions

Specifications

Amperage Rating

15 A

Contact Form

1NO/SPST

Dimensions

4-1/4 in H x 3-1/4 in W x 1-3/8 in D

Enclosure Type

NEMA 4X/6

Horsepower

1 hp

Mounting Type

Wall

Number of Poles

1

Series

E1000

Time Setting

1/2 to 22-1/2 hr

Type

Heavy Duty

Voltage Rating

125 VAC

Standard Approval

cCSAus Certified
