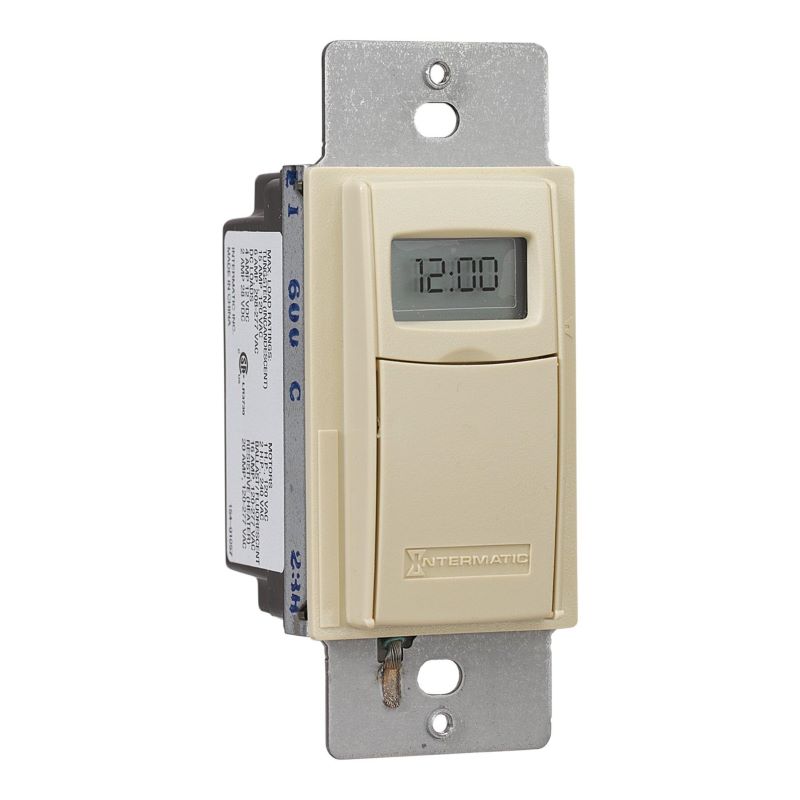

Intermatic® EI600WC
Intermatic® EI600WC Astronomic Digital Decorator Electronic In-Wall Timer, 1 min to 7 days Setting, 120 to 127 VAC, 12 to 18 VDC, 1 hp, 1NO/SPST Contact, 1 Poles
Brand: Intermatic®
Item ID: 371287
MPN: EI600WC
Login for Price
Features
- Versatile 7-day programmable schedules with up to 40 ON/OFF events
- Astronomic clock feature determines dawn and dusk times
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a lived-in appearance
- Single or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type, including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- Decorator switch plate not included
Description
Intermatic® In-Wall Timer, Astronomic Digital Decorator Electronic, Series: EI600, 120 to 127 VAC, 12 to 18 VDC, 15/20 A, 1 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 7 days Time Setting, 7 days Pulse, CR2 Lithium Battery, 32 to 122 deg F, Wall Mounting, 2.75 in H x 1.75 in W x 1.36 in D Dimensions
Specifications
Amperage Rating |
15/20 A |
Battery Type |
CR2 Lithium |
Contact Form |
1NO/SPST |
Dimensions |
2.75 in H x 1.75 in W x 1.36 in D |
Horsepower |
1 hp |
Mounting Type |
Wall |
Number of Poles |
1 |
Pulse Duration |
7 days |
Series |
EI600 |
Temperature Rating |
32 to 122 deg F |
Time Setting |
1 min to 7 days |
Type |
Astronomic Digital Decorator Electronic |
Voltage Rating |
120 to 127 VAC, 12 to 18 VDC |
Standard Approval |
cCSAus Certified|California TITLE 24 Compliant|HVACR|Title CA 20 Listed |
Application |
Incandescent Lighting, Fluorescent Lighting, HVACR, CFL Lighting and LED Lighting |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_6964162877a792f1699c149004132bde6c7a83da00766765d67a5e090c6ba730.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_EI600C_Brochure.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_EI600C_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_EI600C_Specification_Sheet.pdf
