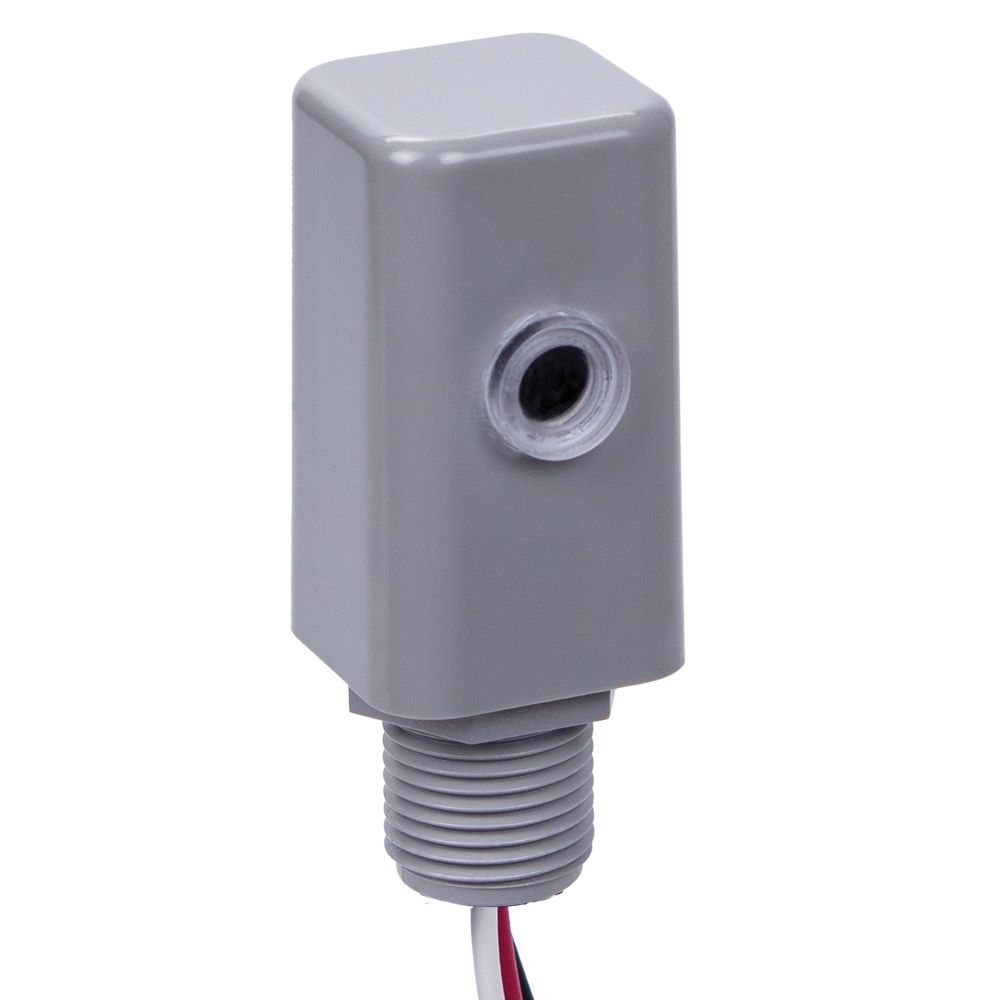

Intermatic® EK4136S

Intermatic® EK4136S Electronic Stem Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Mount, Plastic

Brand: Intermatic®

Item ID: 434878

MPN: EK4136S

Login for Price

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W at 277 VAC)
  • 255 J MOV surge protection element
  • 1/2 in-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 in diameter
  • 18 AWG wire leads

Description

The EK4136S is an electronic photo control that fits standard 1/2 in knockouts in standard outlet boxes and wall pack lighting fixtures. it is made with a uv stabilized, high impact plastic housing that stands up to outdoor environment and features a silicon light sensor with a zero-crossing circuit to provide a long service life.

Intermatic® Stem Mounting Photocontrol, Electronic, HID/LED Fixture, 105 to 305 VAC, 6 A, 50/60 Hz, 1000 W Tungsten, 1800 VA Ballast, 2 to 5 s, 18 AWG Wire, Solid State/Silicon IR Filter Sensor, 1.5 FC ON/2.25 FC OFF, NEMA 4/10, Environmental Conditions: -40 to 158 deg F Operating Temperature, 1000 Operating Cycles, Stem Mount, Plastic, Gray, 2.25 in H x 1.3 in W x 1.24 in D

Specifications

Amperage Rating

6 A

Ballast Load

1800 VA

Color

Gray

Dimensions

2.25 in H x 1.3 in W x 1.24 in D

Enclosure Type

NEMA 4/10

Environmental Conditions

-40 to 158 deg F Operating Temperature

Fixture Type

HID/LED

Frequency Rating

50/60 Hz

Material

Plastic

Mounting Type

Stem

Operating Cycles

1000

Sensitivity

1.5 FC ON/2.25 FC OFF

Sensor Type

Solid State/Silicon IR Filter

Timing Range

2 to 5 s

Tungsten Rating

1000 W

Type

Electronic

Voltage Rating

105 to 305 VAC

Wire Size

18 AWG

Standard Approval

ANSI C136.24 Compliant|UL Certified to US|CSA Certified to Canadian|Title CA 20 Listed

Application

Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
