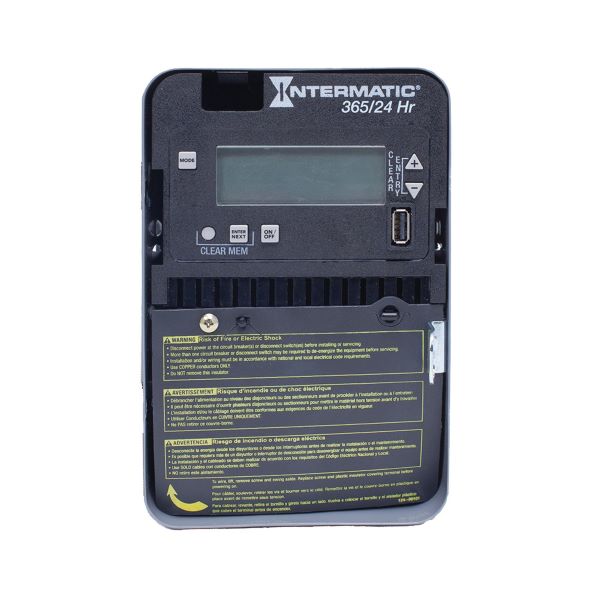

Intermatic® ET2105C

Intermatic® ET2105C ET2100 Electronic Controller Timer, 1 min to 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles

Brand: Intermatic®

Item ID: 470685

MPN: ET2105C

Login for Price

Features

  • 100 hr supercapacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Automatic input voltage selection from 120 to 277 VAC, 60 Hz
  • Additional mode of operation turns the ON/OFF buttons into 2 hr overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero-crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy

Description

The ET2000 Series offers an easy-to-use user interface while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs and a 100-hour backup without the need of batteries, make this series ideal for nearly any application.

Intermatic® Electronic Controller Timer, Series: ET2100, Operation Mode: 24 hr, 120/277 VAC, 30 A, 1, 2 hp, 1 Pole, 1NO/SPST Contact Form, 1 min to 23 hr 59 min Time Setting, Teeter/Wire Lead Electrical Connections, NEMA 1 Enclosure, -40 to 155 deg F, Wall Mounting, 200 mm H x 130.2 mm W x 87.3 mm D Dimensions

Specifications

Amperage Rating

30 A

Contact Form

1NO/SPST

Dimensions

200 mm H x 130.2 mm W x 87.3 mm D

Electrical Connections

Teeter/Wire Lead

Enclosure Type

NEMA 1

Horsepower

1, 2 hp

Mounting Type

Wall

Number of Poles

1

Operation Mode

24 hr

Series

ET2100

Temperature Rating

-40 to 155 deg F

Time Setting

1 min to 23 hr 59 min

Voltage Rating

120/277 VAC

Standard Approval

UL Rating|Meet Title 20/24 ComplianCE Approved

Application

Interior Lighting, Exterior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor and Various Other Electrical Loads Applications

Documentation

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET8415CR_Brochure.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_Installation_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_Installation_Manual.pdf

Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_Instruction_Installation_Sheet.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_User_Manual.pdf

Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b421b1b4093b1b94eedc30779521553023393e97a665b3de8a2ef98f96bc259e.pdf

https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_ET2105C_Specification_Sheet.pdf
