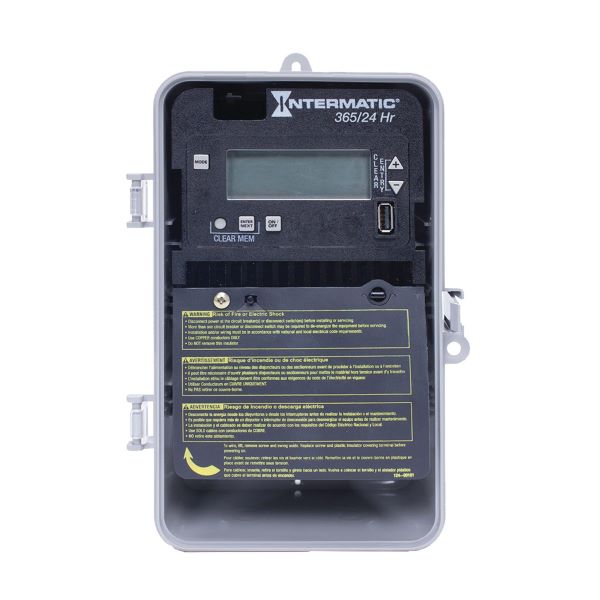

Intermatic® ET2105CP

• 100 hr supercapacitor eliminates the need for batteries
• Up to 96 set points or events
• Up to 50 holiday blocks with schedule capabilities
• Automatic input voltage selection from 120 to 277 VAC, 60 Hz
• Additional mode of operation turns the ON/OFF buttons into 2 hr overrides
• Configurable outputs allow the control of various voltages and applications
• Relays incorporate zero-crossing technology to extend the life of the control
• Non-volatile EEPROM memory protects programming indefinitely
• LED compatible
• USB port makes transferring and saving of schedules easy

The ET2000 Series offers an easy to use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs and a 100 hr backup without the need of batteries, make this series ideal for nearly any application.

Intermatic® Electronic Time Switch, Series: ET2000, Operation Mode: 23 hr 59 min, 120 to 277 VAC, 30 A, 1, 2 hp, 1 Pole, 1 Channels, 1NO/SPST Contact Form, 1 min to 23 hr 59 min Time Setting, 96 Pulse Events, Digital Display, 18 to 10 AWG Wire Lead Electrical Connections, NEMA 3R Enclosure, -40 to 155 deg F, Wall Mounting, 10 in H x 6-1/2 in W x 4 in D Dimensions
