Intermatic® GM40AV

• Autovoltage selection 120 VAC-277 VAC
• Captive trippers - trippers cannot be lost
• 40 A rating
• Self-recharging battery backup, Q models feature 72 hr carry-over
• Power and status LED indicators
• 24 hr or 7-day models available
• Up to 48 ON/OFF operations per 24 hr period or 42 ON/OFF operations per week on W models
• DPDT switching configuration standard (2 NO and 2 NC Contacts)
• Manual three-way ON/OFF/AUTO override switch
• Easy-to-read clock face

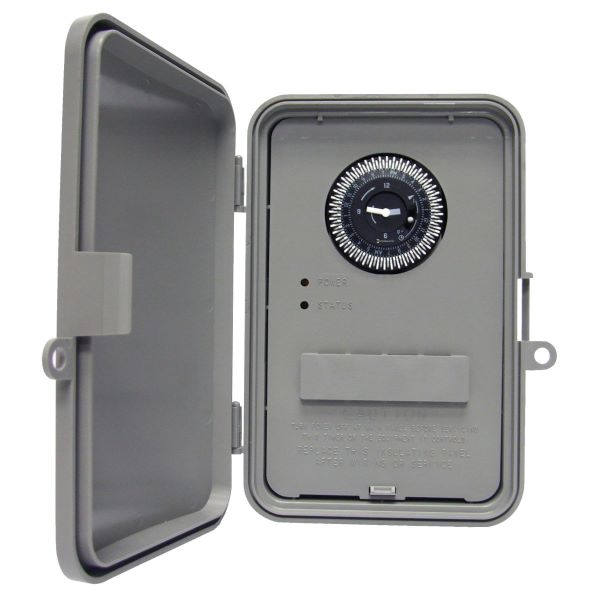

The GM40AV Time Control is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time control automatically detects the input voltage without the use of a DIP switch or selector pins. The time control automatically selects any voltage between 120 VAC and 277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time control features a DPDT switching configuration standard.

Intermatic®, GM40AV, Auto Voltage, Series: GM40, 120 to 208/240/277 VAC, 40 A, 1 hp, 2 hp, 2 Pole, 2NO-2NC/DPDT Contact Form, 15 min to 24 hr Time Setting, 24 hr Pulse, Box Lug/Screw Electrical Connections, NEMA 3R Enclosure, -40 to 131 deg F, Wall Mounting, 8.88 in H x 6.61 in W x 3 in D Dimensions
