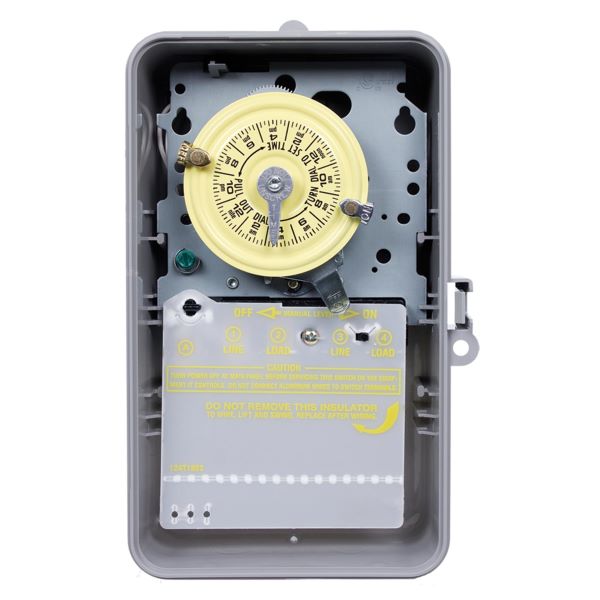

Intermatic® T101P
Intermatic® T101P T100 Electro Mechanical Timer Switch, 24 hr Setting, 125 VAC, 5 hp, 1NO/SPST Contact, 1 Poles
Brand: Intermatic®
Item ID: 15071
MPN: T101P
Login for Price
Features
- Direct 24 hr control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
Description
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Intermatic® Timer Switch, Electro Mechanical, Series: T100, 125 VAC, 40 A, 5 hp, 1 Pole, 1NO/SPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 5-1/2 in L x 3-3/8 in W x 9-3/8 in H Dimensions
Specifications
Amperage Rating |
40 A |
Contact Form |
1NO/SPST |
Dimensions |
5-1/2 in L x 3-3/8 in W x 9-3/8 in H |
Electrical Connections |
Teeter |
Enclosure Type |
NEMA 3R |
Horsepower |
5 hp |
Mounting Type |
Wall |
Number of Poles |
1 |
Series |
T100 |
Temperature Rating |
-40 to 130 deg F |
Time Setting |
24 hr |
Type |
Electro Mechanical |
Voltage Rating |
125 VAC |
Standard Approval |
cCSAus Certified|HVACR |
Application |
Commercial, Industrial, Residential, Outdoor and HVACR Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb66df5f76e541884a19d7969b46a626ce4cad0bde04a63701ead39b8f18a8bb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf
