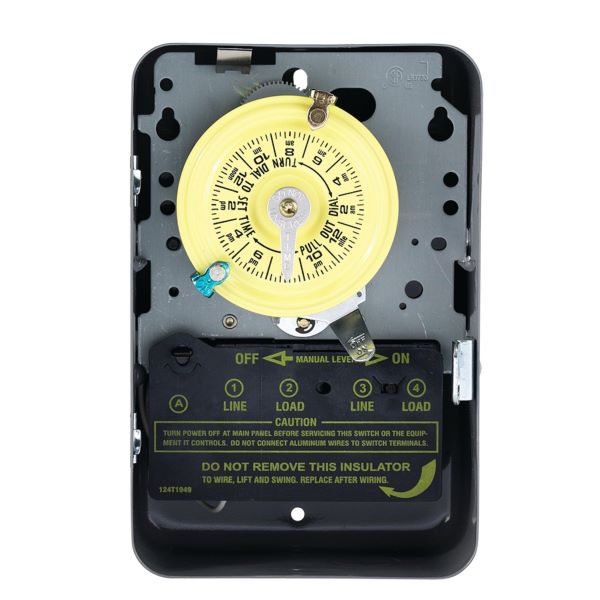

Intermatic® T103
Intermatic® T103 T100 Electro Mechanical Timer Switch, 24 hr Setting, 125 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 15075
MPN: T103
Login for Price
Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Description
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Intermatic® Timer Switch, Electro Mechanical, Series: T100, 125 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 5 in L x 3 in W x 7-3/4 in H Dimensions
Specifications
Amperage Rating |
40 A |
Contact Form |
2NO/DPST |
Dimensions |
5 in L x 3 in W x 7-3/4 in H |
Electrical Connections |
Teeter |
Enclosure Type |
NEMA 1 |
Horsepower |
5 hp |
Mounting Type |
Wall |
Number of Poles |
2 |
Series |
T100 |
Temperature Rating |
-40 to 130 deg F |
Time Setting |
24 hr |
Type |
Electro Mechanical |
Voltage Rating |
125 VAC |
Standard Approval |
cCSAus Certified|HVACR |
Application |
Commercial, Industrial, Residential, Indoor and HVACR Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb66df5f76e541884a19d7969b46a626ce4cad0bde04a63701ead39b8f18a8bb.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf
