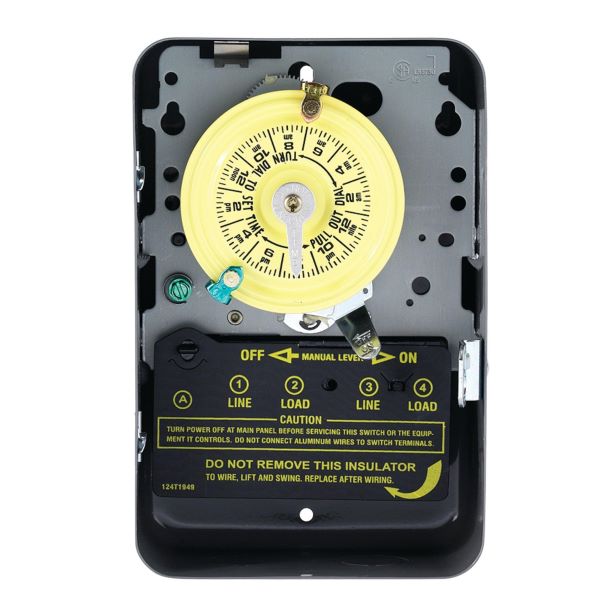

Intermatic® T104
Intermatic® T104 T100 Electro Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 15078
MPN: T104
Login for Price
Features
- Direct 24 hr control of most loads
- Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
Description
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.
Intermatic® Timer Switch, Electro Mechanical, Series: T100, 208 to 277 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, 24 hr Time Setting, Teeter Electrical Connections, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 5 in L x 3 in W x 7-3/4 in H Dimensions
Specifications
Amperage Rating |
40 A |
Contact Form |
2NO/DPST |
Dimensions |
5 in L x 3 in W x 7-3/4 in H |
Electrical Connections |
Teeter |
Enclosure Type |
NEMA 1 |
Horsepower |
5 hp |
Mounting Type |
Wall |
Number of Poles |
2 |
Series |
T100 |
Temperature Rating |
-40 to 130 deg F |
Time Setting |
24 hr |
Type |
Electro Mechanical |
Voltage Rating |
208 to 277 VAC |
Standard Approval |
cCSAus Certified|HVACR |
Application |
Commercial, Industrial, Residential, Indoor and HVACR Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T104_Installation_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101_Specification_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T104_50_Specification_Sheet.pdf
