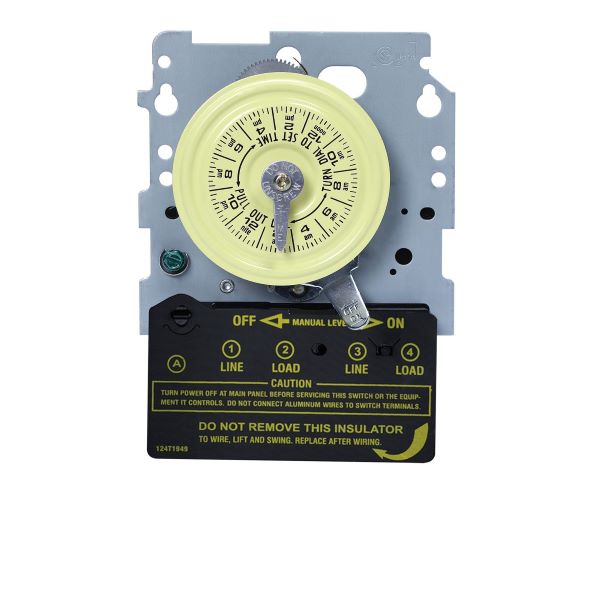

Intermatic® T104M
Intermatic® T104M T100M Mechanical Time Switch Mechanism, 208 to 277 VAC, 40 A, 2NO/DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 15079
MPN: T104M
Login for Price
Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Description
These heavy duty time switch mechanisms are designed for commercial, industrial and residential applications and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with minimum ON/OFF time of 1 hour. All models are equipped with ON and OFF trippers and can be installed in almost all Intermatic enclosures.
Intermatic® Time Switch Mechanism, Mechanical, Series: T100M, 208 to 277 VAC, 40 A, 2 Pole, 2NO/DPST Contact Form, -40 to 130 deg F
Specifications
Amperage Rating |
40 A |
Contact Form |
2NO/DPST |
Number of Poles |
2 |
Series |
T100M |
Temperature Rating |
-40 to 130 deg F |
Type |
Mechanical |
Voltage Rating |
208 to 277 VAC |
Standard Approval |
cCSAus Certified|HVACR |
Application |
Filter Pumps, Heat Pumps, Lighting, HVACR, Commercial, Industrial and Residential Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_d9c89d37209c076e9f14e84b53eac5e4089ee4e037365e58545b204aa5aa8406.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101M_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101M_Specification_Sheet.pdf
