Intermatic® T104M201

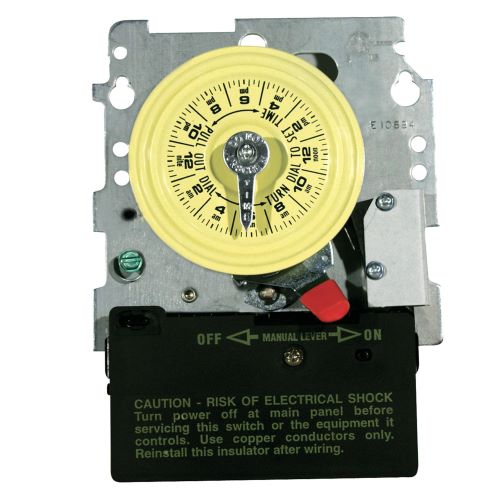

Intermatic® T104M201 Mechanical Time Switch Mechanism, 208 to 277 VAC, 40 A, 2NO/DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 15080
MPN: T104M201
Login for Price
Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Can be installed in most Intermatic enclosures
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Description
This Time Switch Mechanism provides coordinated control for heater and filter pump operations. It is designed to turn OFF a gas fired swimming pool heater approximately 20 minutes before the filter pump shuts down. This eliminates the problem of pounding and knocking due to overheated water, reduces scale and lime deposits and extends the service life of the heater. The 24 hr dial allows up to 12 ON/OFF operations each day. One set of ON and OFF trippers is supplied with each switch. Minimum ON/OFF time is one hour. Can be installed in almost all Intermatic enclosures.
Intermatic® Time Switch Mechanism, Mechanical, 208 to 277 VAC, 40 A, 2 Pole, 2NO/DPST Contact Form, -40 to 130 deg F
Specifications
Amperage Rating |
40 A |
Contact Form |
2NO/DPST |
Number of Poles |
2 |
Temperature Rating |
-40 to 130 deg F |
Type |
Mechanical |
Voltage Rating |
208 to 277 VAC |
Standard Approval |
cCSAus Certified |
Application |
Industrial, Pool and Spa Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_806a8eefcc92e25365ac9d7b4f11c8854d280165990e98fdb1eeef5096b2a8aa.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T104M201_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T104M201_Specification_Sheet.pdf
