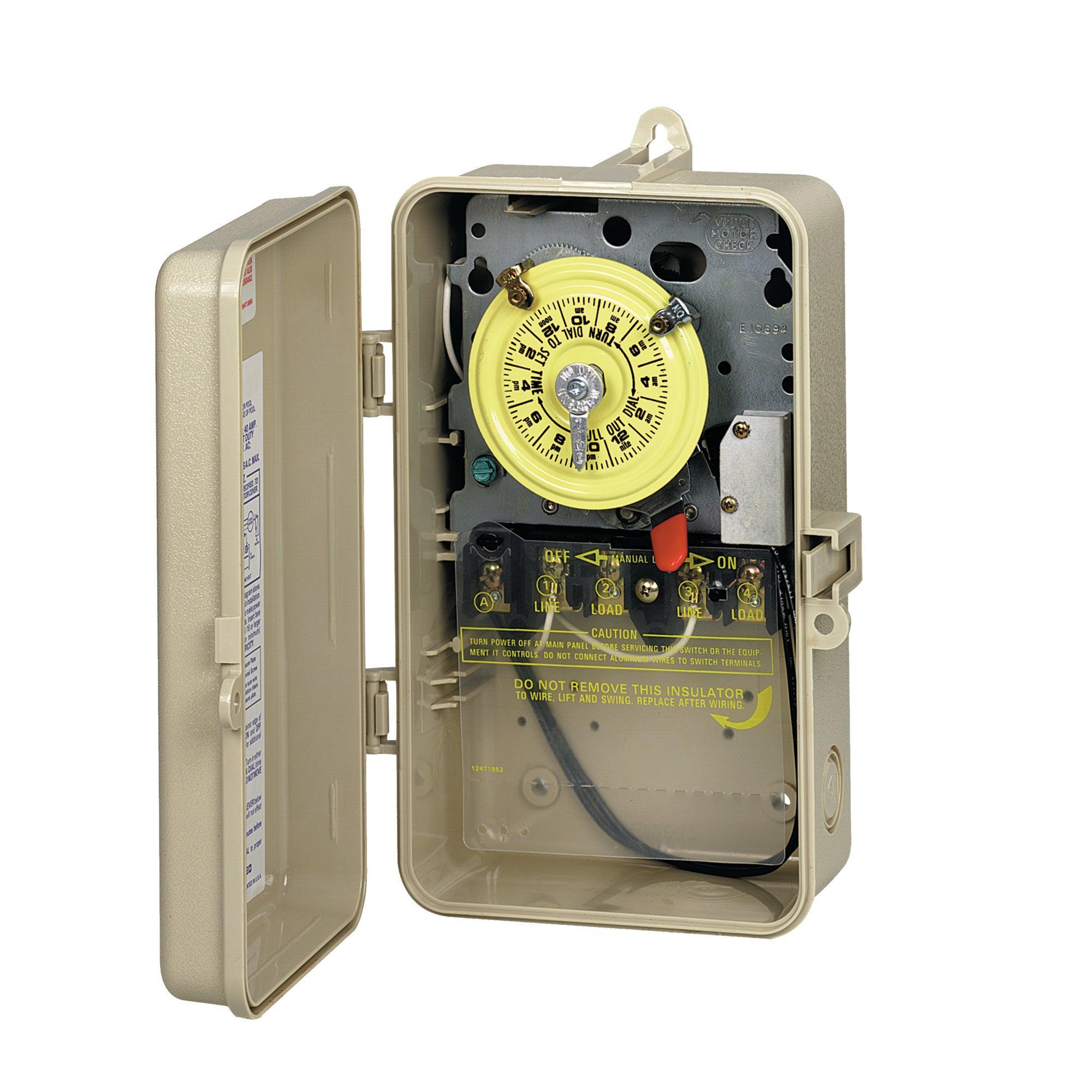

Intermatic® T104P201
Intermatic® T104P201 T100 Heavy Duty Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 15082
MPN: T104P201
Login for Price
Features
- Highest motor load ratings in the industry
- 12 ON/OFF operations per day
- One ON and one OFF tripper included
- Available with pool heater protection
- Teeter-type terminals for multiple load connections
Description
These heavy-duty Mechanical Time Switches are designed for commercial, industrial and residential applications and have the highest motor load ratings in the industry. They provide up to 12 ON/OFF operations each day with a minimum ON/OFF time of 1 hour.
Intermatic® Mechanical Timer Switch, Heavy Duty, Series: T100, 208 to 277 VAC, 40 A, 5 hp, 2 Pole, 2NO/DPST Contact Form, 24 hr Time Setting, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 10 in H x 6-1/2 in W x 4 in D Dimensions
Specifications
Amperage Rating |
40 A |
Contact Form |
2NO/DPST |
Dimensions |
10 in H x 6-1/2 in W x 4 in D |
Enclosure Type |
NEMA 3R |
Horsepower |
5 hp |
Mounting Type |
Wall |
Number of Poles |
2 |
Series |
T100 |
Temperature Rating |
-40 to 130 deg F |
Time Setting |
24 hr |
Type |
Heavy Duty |
Voltage Rating |
208 to 277 VAC |
Standard Approval |
cCSAus Certified |
Application |
Commercial, Industrial, Residential, Booster Pumps, Lighting, Hydro Chlorinators, Fans, Air Conditioning, Music and Signal Systems, Heat Pumps, Pool and Spa Controls Applications |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f3597a89c52d7b6a8d906ac7f7fab17e16d3e9ca653ac7185b71f4cbb1e06396.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101P3_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T101P3_Specification_Sheet.pdf
