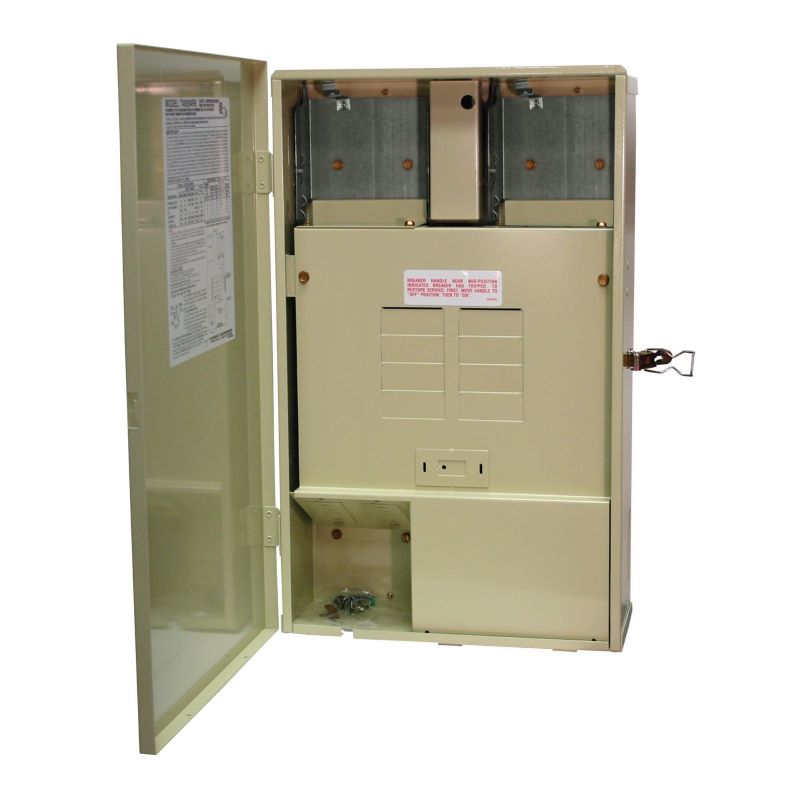

Intermatic® T40000R4
Intermatic® T40000R4 Rainproof Control Panel Enclosure, NEMA 3R, Wall Mount, -40 to 130 deg F, For Use With 1-Phase, 120/208/240 VAC, 60 Hz, 3 W, 125 A Load Center
Brand: Intermatic®
Item ID: 15098
MPN: T40000R4
Login for Price
Features
- Eight breaker spaces
- Reduces installation costs
- All-in-one electrical load center eliminates the need for additional service panels
- Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
- Fully compatible with all electrical requirements for pool/spa installations
- Load center dead front has four knockouts for switches or GFCIs (Note- T40000R4 has one knockout)
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
Description
Intermatic® Control Panel Enclosure, Rainproof, For Use With: 1-Phase, 120/208/240 VAC, 60 Hz, 3 W, 125 A Load Center, Specifications: NEMA 3R, Wall Mount, -40 to 130 deg F, 20-3/4 in H x 12-3/4 in W x 4-1/2 in D Dimensions
Specifications
Dimensions |
20-3/4 in H x 12-3/4 in W x 4-1/2 in D |
Specifications |
NEMA 3R, Wall Mount, -40 to 130 deg F |
Suitable For Use With |
1-Phase, 120/208/240 VAC, 60 Hz, 3 W, 125 A Load Center |
Type |
Rainproof |
Standard Approval |
cCSAus Certified |
Application |
Pool and Spa Equipment Control, Indoor/Outdoor, Pumps and Lighting Applications |
Documentation
Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T40000R4_Instruction_Sheet.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5d1c56de1831d49f7d2e360eba5a4a1c01918bd7608f0213d7484531e300308a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T40000R4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T40000R4_Specification_Sheet.pdf
