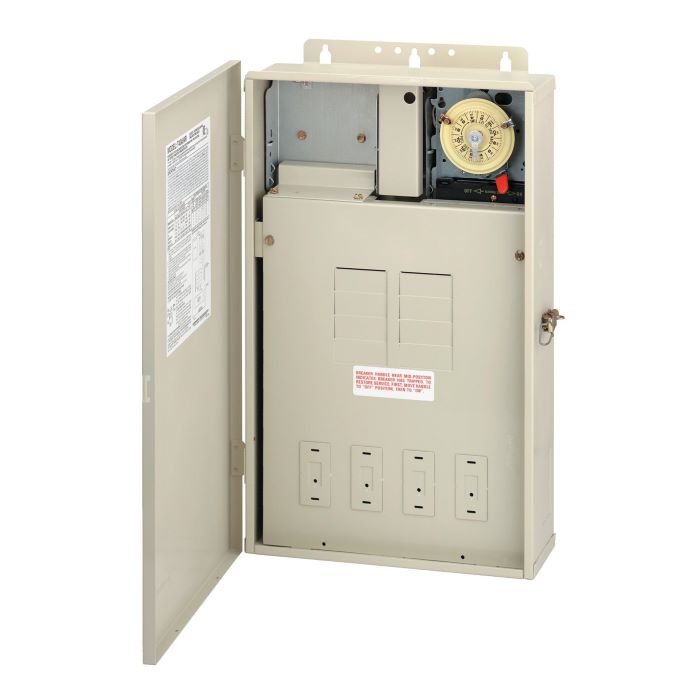

Intermatic® T40004R
Intermatic® T40004R T40000R 1-Phase Mechanical Timer Switch, 24 hr Setting, 240 VAC, 5 hp, DPST Contact, 2 Poles
Brand: Intermatic®
Item ID: 159514
MPN: T40004R
Login for Price
Features
- Eight breaker spaces
- Reduces installation costs
- All-in-one electrical load center eliminates the need for additional service panels
- Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
- Fully compatible with all electrical requirements for pool/spa installations
- Load center dead front has four knockouts for switches or GFCIs (Note- T40000R4 has one knockout)
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
Description
Intermatic® Mechanical Timer Switch, 1-Phase, Series: T40000R, 240 VAC, 125 A, 5 hp, 2 Pole, DPST Contact Form, 24 hr Time Setting, NEMA 3R Enclosure, -40 to 130 deg F, Wall Mounting, 20-3/4 in H x 12-3/4 in W x 4-1/2 in D Dimensions
Specifications
Amperage Rating |
125 A |
Contact Form |
DPST |
Dimensions |
20-3/4 in H x 12-3/4 in W x 4-1/2 in D |
Enclosure Type |
NEMA 3R |
Horsepower |
5 hp |
Mounting Type |
Wall |
Number of Poles |
2 |
Series |
T40000R |
Temperature Rating |
-40 to 130 deg F |
Time Setting |
24 hr |
Type |
1-Phase |
Voltage Rating |
240 VAC |
Standard Approval |
cCSAus Certified |
Application |
Pool and Spa Equipment Control and Load Center |
Documentation
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_5d1c56de1831d49f7d2e360eba5a4a1c01918bd7608f0213d7484531e300308a.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T40000R4_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_T40000R4_Specification_Sheet.pdf
