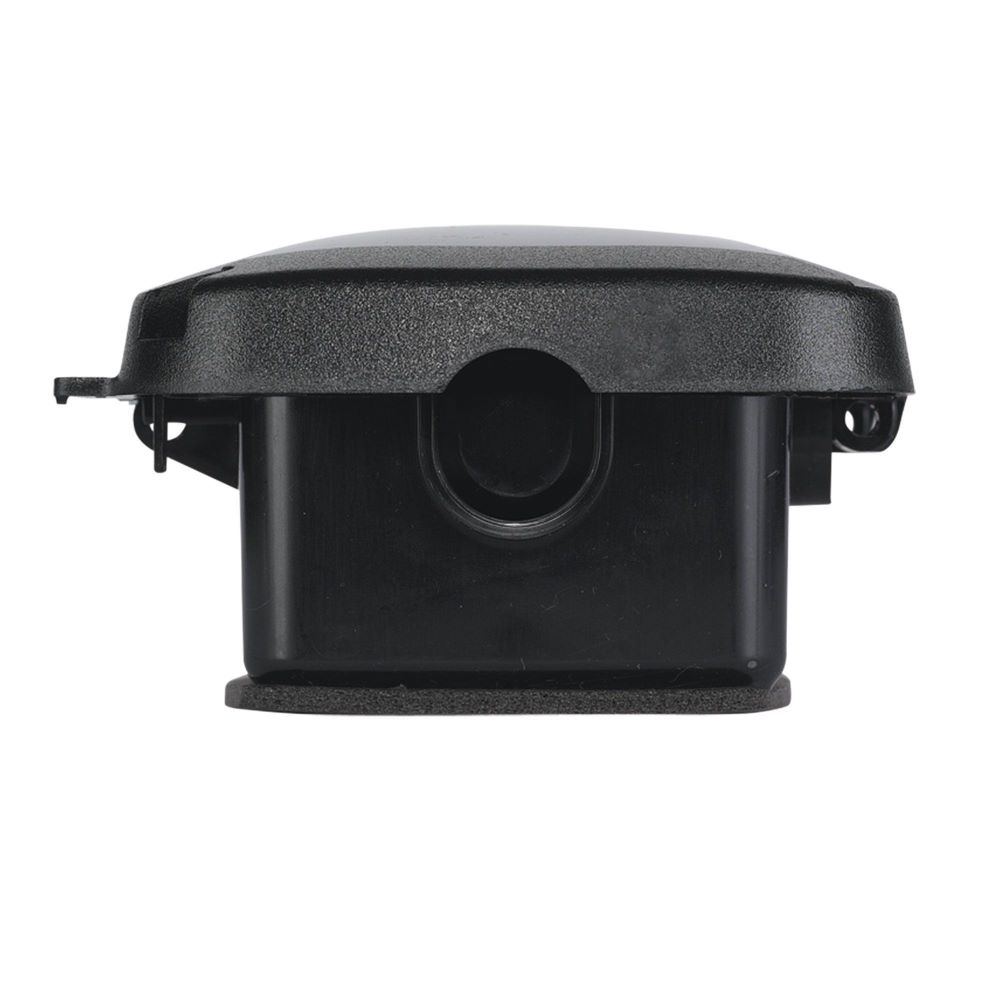

Intermatic® WP5100BL
Intermatic® WP5100BL Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 6-1/2 in L x 4-3/4 in W x 2-3/4 in D, Receptacle Cover, Polycarbonate
Brand: Intermatic®
Item ID: 478282
MPN: WP5100BL
Login for Price
Features
- Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
- Meets requirements for cold impact testing -60 deg F (-51 deg C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1/8 in (3 mm) thick, neoprene gasket with slits for mounting screws
- Lockable hasp, All models accept up to 1/4 in (6 mm) dia shank
- Impact rated 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Description
Intermatic® Weatherproof While-In-Use Cover, Heavy Duty Non-Metallic, 1 Outlets, 1 Gangs, 6-1/2 in Length, 4-3/4 in Width, 2-3/4 in Depth, Rectangular Shape, Receptacle Cover, -51 deg C, Neoprene Gasket Insulation, Horizontal/Vertical Mounting, Surface Mounting, Polycarbonate, Black
Specifications
Color |
Black |
Cover Type |
Receptacle |
Depth |
2-3/4 in |
Insulation |
Neoprene Gasket |
Length |
6-1/2 in |
Material |
Polycarbonate |
Mounting Orientation |
Horizontal/Vertical |
Mounting Type |
Surface |
Number of Gangs |
1 |
Number of Outlets |
1 |
Shape |
Rectangular |
Temperature Rating |
-51 deg C |
Type |
Heavy Duty Non-Metallic |
Width |
4-3/4 in |
Standard Approval |
2014 NEC Article 406.9(B)(1) Compliant|UL Certified for Type 3R|UL Listed|CSA Certified|CEC Rule 26-702 |
Application |
Industrial, Commercial, Manufacturing, Residential, Agricultural, Signage, Athletic Fields, Wet Location and Heavy Duty Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP5221C_Brochure.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4321adeb3c79821f7f8a8b880bb22f26a23c35c6f3408077e5b36f1df1c31986.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP5221C_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP5221C_Specification_Sheet.pdf
