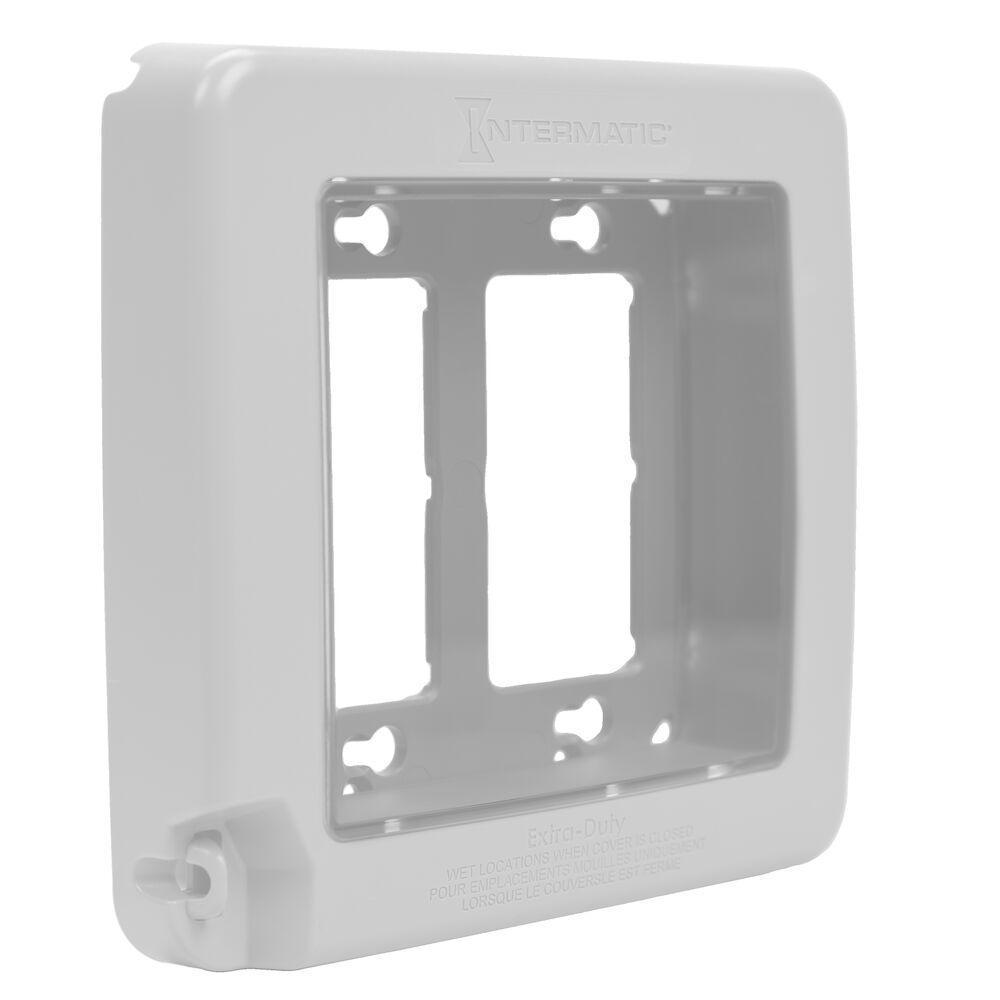

Intermatic® WP7200W
Intermatic® WP7200W 16-Configuration Extra Duty Low Profile Weatherproof In-Use Cover, 5-1/2 in L x 5.6 in W x 1-1/2 in D, Receptacle Cover, Plastic
Brand: Intermatic®
Item ID: 489507
MPN: WP7200W
Login for Price
Features
- 100% Paintable surface
- Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
- Meets requirements for cold impact testing -60 deg F (-51 deg C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
- 1/8 in (3 mm) thick, neoprene gasket with slits for mounting screws
- Lockable hasp, All models accept up to 0.19 in dia shank
- Impact rated 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Description
Intermatic® In-Use Cover, 16-Configuration Extra Duty Low Profile Weatherproof, 2 Gangs, 5-1/2 in Length, 5.6 in Width, 1-1/2 in Depth, Squared, Receptacle Cover, Neoprene Gasket, Vertical Mount, Surface Mount, Plastic, White
Specifications
Color |
White |
Cover Type |
Receptacle |
Depth |
1-1/2 in |
Insulation |
Neoprene Gasket |
Length |
5-1/2 in |
Material |
Plastic |
Mounting Orientation |
Vertical |
Mounting Type |
Surface |
Number of Gangs |
2 |
Shape |
Squared |
Type |
16-Configuration Extra Duty Low Profile Weatherproof |
Width |
5.6 in |
Standard Approval |
NEC Article 406.9 (B)(1) |
Application |
Outdoor Signage, Athletic Fields, Agricultural, Commercial and Residential Applications |
Documentation
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP6000BR_Catalog.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP102_User_Manual.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP102_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f17331eeea7565ba73be63770786838c41b206eae9b90310411511e4e02b46ac.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP7200W_Specification_Sheet.pdf https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Intermatic_WP7200W_Specification_Sheet.pdf
