Scepter® 077023

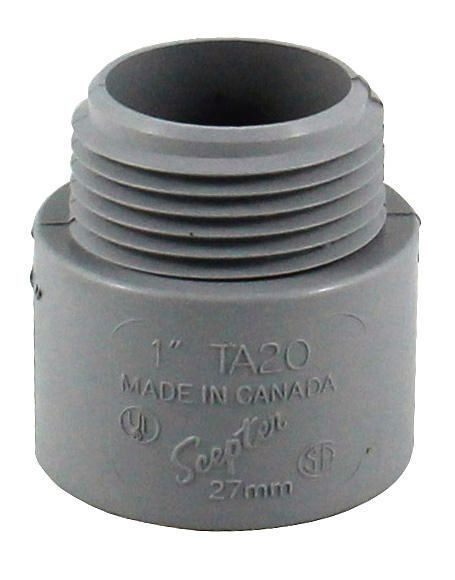

Scepter® 077023 Terminal Adapter, 1 in, Male Thread, PVC Coated
Brand: Scepter®
Item ID: 6672
MPN: 077023
Login for Price
Features
- 0.63 in thread length
Description
Scepter Rigid PVC Conduit pipe and fittings are non-sparking and non-conducting, thereby eliminating the most dangerous second point of contact and phase to ground faults. The use of a separate grounding conductor in a Scepter PVC conduit system gives a complete and positive ground for the whole system.
Scepter® Terminal Adapter, 1 in Size, Male Thread, For Use With: Rigid Conduit, PVC Coated, 1.32 in ID x 1.59 in OD x 1.65 in L Dimensions
Specifications
Dimensions |
1.32 in ID x 1.59 in OD x 1.65 in L |
Material |
PVC Coated |
Size |
1 in |
Suitable For Use With |
Rigid Conduit |
Thread Type |
Male |
Standard Approval |
CSA C22.2 85 Certified|UL 651 Listed|ARRA Compliant|Buy American Act Compliant |
Application |
For electrical enclosure connection fitting |
Documentation
Owners/User Manual 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077023_User_Manual.pdf
Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_User_Manual.pdf
Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077023_Specification_Sheet.pdf
Warranty Information 2 https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077023_Warranty.pdf
Warranty Information https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077362_Warranty.pdf
